420 watt, 1 channel DC supply - 60V, 7A / 42V, 10A / 28V, 15A / 20V, 20A

• Bench/System DC Power Supply, PowerFlex Regulation, Smart Analog Controls Single Output, 60V/20A 420W, No Interfaces
• CPX400S PowerFlex DC Power Supply with Manual Control Only
• Single or Dual Outputs, 360 watts to 840 watts
• PowerFlex regulation - for maximum flexibility
• Two fully independent outputs (D models)
• Low noise and good transient response
• Isolated voltage tracking for versatility (D models)
• True Analog controls - for ease of use
• S-Lock function - instantly lock settings
• Custom Limits - set your exact requirements

The CPX Series of laboratory DC power supplies is one of Aim-TTi's most successful product lines. Tens of thousands of CPX models are in service across the world.

PowerFlex regulation allows them to provide higher currents at lower voltages enabling the power to be tailored to suit a wider variety of applications.

The range includes single and dual output models with a total power ranging from 360 watts up to 840 watts.

CPX Series
Precision Metering - for reduced uncertainty USB, RS232, GPIB & LAN interfaces (P Models) Duplicate rear terminals (P Models & CPX400SA) Variable OVP and OCP trips Compact design uses less bench/rack space DC output switches and "view limits" buttons Synchronous switching of both outputs (D models) Safety binding-post connection terminals Easy-switch remote or local voltage sensing Isolated Analog remote control (CPX400SA only.

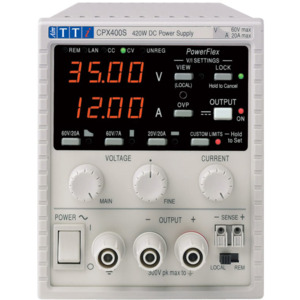

CPX400S - SINGLE OUTPUT, ULTRA COMPACT
DESIGN The CPX400S is a single output version of the CPX400D providing up to 60 volts and 20 amps within its 420 watt power envelope. It is housed in a ¼ rack width 3U high case that uses the minimum possible space for either bench use or rack mounting
