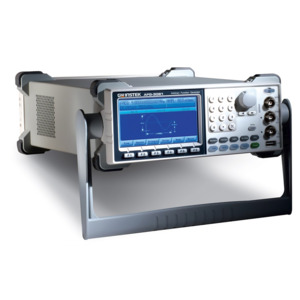

Instek AFG-3015 50MHz Arbitrary Function Generator

Features

• Wide frequency range from 1uHz to 50MHz
• Supports many types of signal applications
• High 200MSa/s sampling rate
• 16-bit Amplitude Resolution
• Output from any section of 1M-point-long waveforms
• 4.3" high resolution LCD display
• Four ways to generate arbitrary waveforms from Front Panel Operation, CSV file uploading, Direct Waveform Reconstruction (DWR), Arbitrary Waveform Editing PC Software
• Impedance switch / on-screen help
• USB, RS-232, GPIB interface support

Specifications

• Sine, Square, Ramp, Pulse, Noise, Sinc standard waveforms
• Internal and external LIN/LOG sweep with marker output
• Int/Ext AM, FM, PWM, FSK modulation
• Modulation/sweep signal output
• Burst function with internal and external triggers without marker output
• Store/recall 10 groups of setting memories
• Output overload protection

The AFG-3000 Series is an arbitrary waveform generator designed for industrial, scientific research and educational applications. The series comes in bandwidths of 80MHz (AFG-3081) and 50MHz (AFG-3051) with built-in multiple standard waveforms to meet users' diversified needs.

The AFG-3000 Series also provides a high 16-bit resolution, 200MSa/s sample rate, and a 1M memory depth for editing arbitrary waveforms directly through the intuitive user interface. The Direct Waveform Reconstruction (DWR) function enables users to directly import waveforms from a GDS-2000 Series oscilloscope to the AFG-3000 via USB host, allowing users to edit waveforms and enhance measurement efficiency. In addition, the AFG-3000 Series has switchable 50 Ohm and Hi-Z Impedances, built-in On-Screen Help for operation conveniently. Complete parameter settings and waveforms can be displayed through a 4.3-inch high-resolution TFT LCD. Through USB, RS-232, and GPIB, users can use dedicated PC software or IEEE488.2 commands to edit waveforms.

In The Box

• Power cord x 1
• GTL-110 x 1 Test Lead
• Instruction Manual x 1
