Keysight DAQM909A Simultaneous Sampling Module, 4 Channel, 36Vpk, 4mA, For DAQ970A, DAQ973A

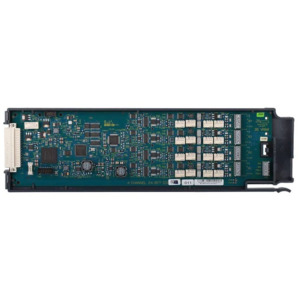

DAQM909A 4-Channel 24-bit Digitizer Module

The DAQM909A is a four-channel digitizer module that offers four channels with simultaneous sampling at rates up to 800k samples per second and a maximum resolution of 24 bits. The input channels can be set up as either differential or single-ended inputs, and each channel can supply up to 4mA of constant current to power an external IEPE transducer. When three DAQM909A modules are used in the same instrument, all 12 channels can be synchronized for simultaneous sampling.

Key Features:

• Simultaneous sampling

• Up to 800 kSa/s at 24-bit

• Time/frequency domain measurement with Benchvue DAQ

DAQ970/73A Data Acquisition System Mainframe Highlights

The 3-slot mainframe for housing DAQ plug-in modules (sold separately) has the benefit of proven Keysight measurement performance, universal inputs with built-in signal conditioning, and modular flexibility, all in a low-cost, compact data acquisition package. Mix and match by choosing from 10 switch, RF and control plug-in modules to get just the functionality you need right now - then change or add more channels later as your application grows.

As accurate as the best bench DMM available, the DAQ970A/DAQ973A features 6 1/2 digits (22 bits) of resolution, 0.003% basic dcV accuracy, and ultra-low reading noise. Combine that with scan rates of up to 450 channels/sec, and you’ve got the speed and accuracy you need to get the job done right.
