Tektronix MSO68B/6-BW-1000 Mixed Signal Oscilloscope, 8/64 CH, 1GHz, 12.5GS/s, 6 Series B MSO

Tektronix 6 Series B MSO, 8 FlexChannels with 1 GHz Bandwidth, 62.5 Mpt Record Length, 50 GS/s Sampling Rate (2ch), 15.6" Touchscreen

• 1 GHz bandwidth

• 8 Flex Channels

• Each Flex Channel provides one analog signal or eight digital logic inputs with optional TLP058 logic probe

• Sample rate: Real-time: 50 GS/s (2 channels), 25 GS/s (4 channels)

• Record length: 62.5Mpoints standard (expandable via option)

• Waveform capture rate: >500,000 waveforms/s

• Vertical resolution: 12-bit ADC, up to 16-bit in High Res mode

• 15.6” capacitive touchscreen

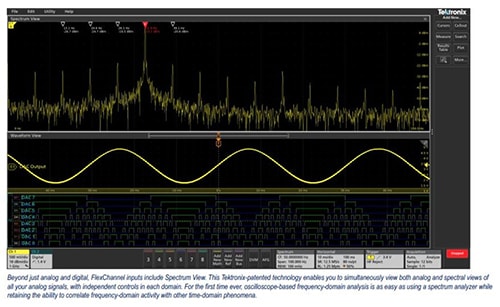

• Spectrum View: Frequency-domain analysis with independent controls for frequency and time domains

With the lowest input noise and up to 10 GHz analog bandwidth, the 6 Series MSO provides the best signal fidelity for analyzing and debugging today's embedded systems with GHz clock and bus speeds. The remarkably innovative pinch-swipe-zoom touchscreen user interface coupled with the industry's largest high-definition display and up to 8 FlexChannel inputs that let you measure one analog or eight digital signals per channel, the 6 Series MSO is ready for today's toughest challenges and tomorrow's too.

Features:

• Display: 15.6-inch (396 mm) High Definition TFT color

  • Capacitive touchscreen (Pinch/Zoom/Swipe/Drag)

  • Variable font size: 12 points to 20 points

• Connectivity: USB Host (7 ports), USB 3.0 Device (1 port), LAN (10/100/1000 Base-T Ethernet), Display Port, DVI-I, VGA

• e*Scope: Remotely view and control the oscilloscope over a network connection through a standard web browser

• Sample rate (all analog / digital channels):

  • Real-time: 50 GS/s (2 channels), 25 GS/s (4 channels), 12.5 GS/s (> 4 channels)

  • Interpolated: 2.5 TS/s

• Record length (all analog / digital channels)

  • 62.5 Mpoints standard

  • 125, 250, 500 Mpoints, or 1 Gpoints (optional)

• Waveform capture rate: >500,000 waveforms/s

• Vertical resolution: 12-bit ADC / Up to 16-bits in High Res mode

• Standard trigger types:

  • Edge, Pulse Width, Runt, Timeout, Window, Logic, Setup & Hold, Rise/Fall Time, Parallel Bus, Sequence, Visual Trigger, Video

  • Auxiliary Trigger ≤5 VRMS, 50 ohm, 400 MHz (Edge Trigger only)

• Standard analysis:

  • Cursors: Waveform, V Bars, H Bars, V&H Bars

  • Measurements: 36

  • Spectrum View: Frequency-domain analysis with independent controls for frequency and time domains

  • FastFrame: Segmented memory acquisition mode with maximum trigger rate >5,000,000 waveforms per second

  • Plots: Time Trend, Histogram, Spectrum and Phase Noise

  • Math: Basic waveform arithmetic, FFT, and advanced equation editor

  • Search: Search on any trigger criteria

  • Jitter: TIE and Phase Noise

• Optional analysis: Advanced Jitter and Eye Diagram, Mask/Limit Testing, LVDS Debug and Analysis

• Optional protocol trigger, decode, and analysis

• Optional serial compliance test

• Optional memory analysis

• Optional Arbitrary/Function Generator

• Optional Digital voltmeter

• Optional Trigger frequency counter

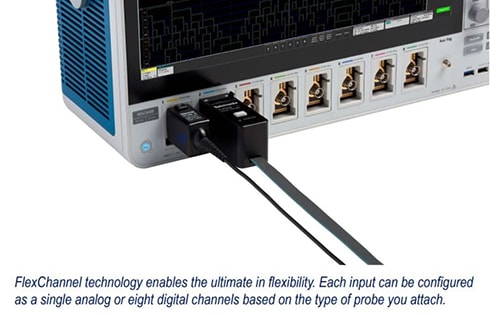

FlexChannel Technology enables maximum Flexibility and Broader System Visibility

The 6 Series MSO redefines what a Mixed Signal Oscilloscope (MSO) should be. FlexChannel technology enables each channel input to be used as a single analog channel, eight digital logic inputs (with the TLP058 logic probe), or simultaneous analog and spectrum views with independent acquisition controls for each domain. Imagine the flexibility and configurability this provides.

You can change the configuration at any time by simply adding or removing TLP058 logic probes, so you always have the right number of digital channels.

Previous-generation MSOs required tradeoffs, with digital channels having lower sample rates or shorter record lengths than analog channels. The 6 Series MSO offers a new level of integration of digital channels. Digital channels share the same high sample rate (up to 50 GS/s), and long record length (up to 1 Gpoints) as analog channels

Unprecedented Signal Viewing Capability

The stunning 15.6" (396 mm) display in the 6 Series MSO is the largest display in the industry. It is also the highest resolution display, with full HD resolution (1,920 x 1,080), enabling you to see many signals at once with ample room for critical readouts and analysis.

The viewing area is optimized to ensure that the maximum vertical space is available for waveforms. The Results Bar on the right can be hidden, enabling the waveform view to use the full width of the display.

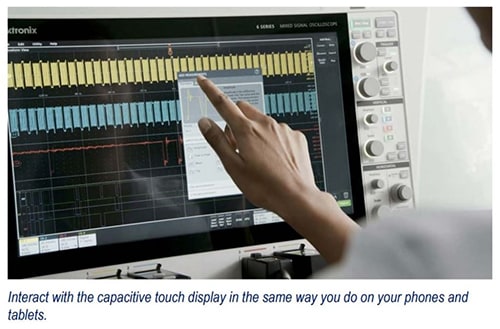

Touch Interaction is finally done right

Scopes have included touch screens for years, but the touch interface has been an afterthought. The 6 Series MSO's 15.6" display includes a capacitive touchscreen and provides the industry's first oscilloscope user interface truly designed for touch.

The touch interactions that you use with phones and tablets, and expect in a touch-enabled device, are supported in the 6 Series MSO.

Smooth, responsive front panel controls allow you to make adjustments with familiar knobs and buttons, and you can add a mouse or keyboard as a third interaction method.

• Drag waveforms left/right or up/down to adjust the horizontal and vertical position or to pan a zoomed view

• Pinch and expand to change scale or zoom in/out in either horizontal or vertical directions

• Flick items off the edge of the screen to delete them

• Swipe in from the right to reveal the Results Bar or down from the top to access the menus in the upper left corner of the display.

Industry-leading Vertical Resolution and Low Noise

The 6 Series MSO provides the performance to capture the signals of interest while minimizing the effects of unwanted noise when you need to capture high-amplitude signals while seeing smaller signal details. At the heart of the 6 Series MSO are 12-bit analog-to-digital converters (ADCs) that provide 16 times the vertical resolution of traditional 8-bit ADCs.

A new High Res mode applies a hardware-based unique Finite Impulse Response (FIR) filter based on the selected sample rate. The FIR filter maintains the maximum bandwidth possible for that sample rate while preventing aliasing and removing noise from the oscilloscope amplifiers and ADC above the usable bandwidth for the selected sample rate.

High Res mode always provides at least 12 bits of vertical resolution and extends all the way to 16 bits of vertical resolution at ≤ 625 MS/s sample rates and 200 MHz of bandwidth. The following table shows the number of bits of vertical resolution for each sample rate setting when in High Res.

Applications

Some features shown below require the purchase of optional software. Please contact us for more information.

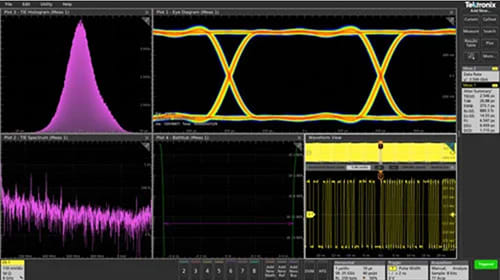

Jitter Analysis

Clocks are the heart of every embedded system and digital communication link. Jitter and other clock distortion can impact system operation, and getting to the root cause can be challenging without the right analysis tools.

• Standard phase noise, TIE, and frequency plots and histograms

• Optional advanced analysis with jitter decomposition and clock recovery

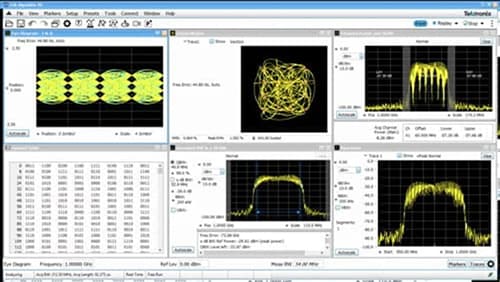

Vector Signal Analysis

Conduct advanced wideband RF analysis with up to 2 GHz analysis bandwidth with SignalVu-PC Vector Signal Analysis software.

• RF measurements

• Modulation analysis

• 5G NR measurements

• Error vector magnitude

• Pulsed RF measurements

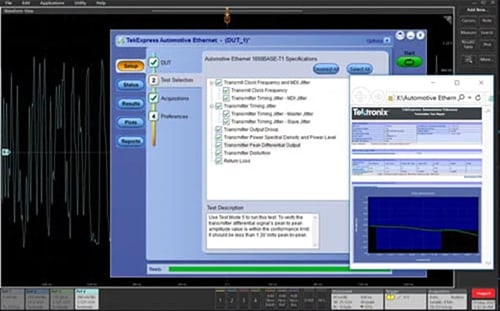

Serial Standards Compliance Testing

High-speed digital interfaces rely on rigorous test procedures to ensure reliability and interoperability. Automated compliance testing software manages the whole testing process -- setup, making measurements, checking against limits, and generating detailed reports.

• Ethernet 10/100/1000BASE-T, NBASE-T and XGBT

• Automotive Ethernet 10/100/1000BASE-T1

• MIPI D-PHY 1.2

• Automotive Ethernet 100/1000BASE-T1

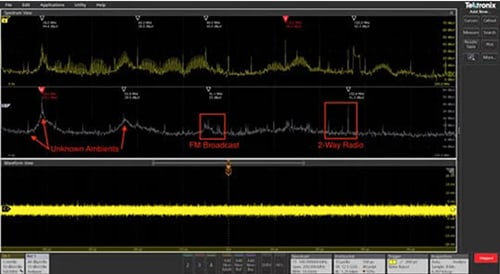

Electromagnetic Interference (EMI) Troubleshooting

Each analog channel on the 6 Series MSO can show you a time domain waveform, a spectrum, or both. Time and frequency plots are synchronized to help you quickly determine which signals are the victims and which ones are the aggressors.

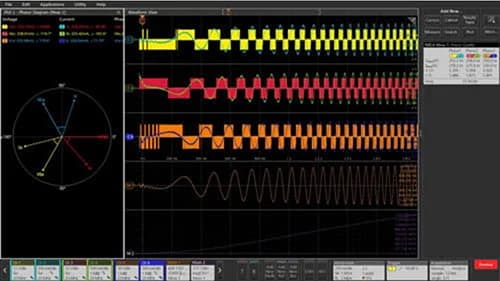

3-Phase Inverters, Motors, and Drives

The Inverters, Motors, and Drives Analysis package makes it easy to perform stable, reliable power measurements on 3-phase PWM systems.

• Up to 8 analog input channels

• 3-phase wye, delta, and single-phase wiring configurations

• Comprehensive power and harmonics measurements

• Mechanical measurements

• DQ0 measurements

In The Box

• (1) TPP1000 6 GHz, low-C Passive Probe for each Channel, with accessories

• Front Cover with Accessory Pouch

• Mouse

• Power Cord

• Printed Installation Manual covers safety and basic operation

• Comprehensive built-in online help

• Certificate of Traceability

• 1-year warranty on the instrument and included Probes
