• Bandwidth: 500 MHz
• Differential Voltage: ±2500 V
• Common Mode Voltage: ±60 kV
• Fiber Cable Length: 2 meters
• Common Mode Rejection Ratio:
• DC: 160dB
• 100 MHz: 100 dB
• 200 MHz: 100 dB

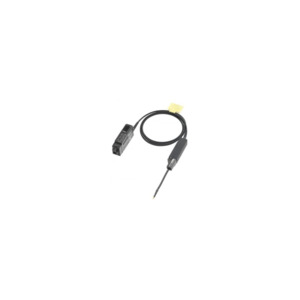

IsoVu probe technology delivers accurate differential measurements up to ±2500 V on reference voltages slewing ±60 kV at 100 V/ns or faster. With the IsoVu Generation 2 design, you get all the benefits of IsoVu technology at 1/5 of the size of first-generation probes.

With versatile MMCX connectors and an unmatched combination of bandwidth, dynamic range, and common-mode rejection, IsoVu Gen 2 probes are setting new standards for isolated probe technology and enabling wide bandgap power designs using SiC and GaN.

Benefits of IsoVu Probes
IsoVu technology uses power-over-fiber and an optical analog signal path for complete galvanic isolation between the measurement system and your DUT. By allowing the probe to float independently at the common-mode voltage, isolation provides important advantages.

• 160 dB (100 million to 1) CMRR at DC
• Up to 120 dB (1 million to 1) CMRR at 100 MHz
• Up to 80 dB (10,000 to 1) CMRR at 1 GHz
• ±60 kV Common-Mode Voltage range
• Up to ±2500 V differential input Voltage range
• Up to ±2500 V offset range
