Rohde & Schwarz NGP824COMB DC Power Supply Bundle, Quad Output, 4x 64V/10A, 800W, NGP800 Series
Our Part #32003.2
Condition:New
Mfr Part #NGP824COMB
- Description
- Specifications
- Documents
Rohde & Schwarz NGP800 Series - NGP824COMB DC Power Supply Bundle
The NGP824COMB is a value-added package built around the NGP824 four-channel 800 W power supply. It combines the high-voltage capabilities of the NGP824 with productivity-enhancing options for advanced automation and test integration. This package is ideal for organizations that require enhanced triggering, external control, and system-level synchronization immediately out of the box.
Key Facts:
NGP824 4-channel platform
800 W total output power
Four 64 V / 10 A outputs
Series operation up to 250 V
Includes Digital Trigger I/O functionality
Includes Analog Input functionality
Enhanced automation capability
Built-in measurements, logging, and sequencing
LAN and USB connectivity

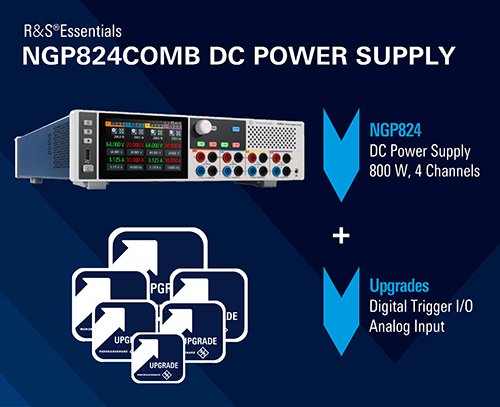

Bundle Includes:
NGP8024 DC Power Supply
NGM-K103 Digital Trigger I/O:
Adds configurable digital I/O for triggering outputs, running sequences, starting data logging, and monitoring instrument status in automated test environments.NGM-K107 Analog Input:
Enables external 0 V to 5 V analog control of output voltage and current, providing fast, isolated control for dynamic power applications.
Models | Number of output Channels | Max. output power | Output voltage per channel | Output current per channel |
|---|---|---|---|---|
NGP802 | 2 | 400 W | 0 V to 32 V | 0 A to 20 A |
NGP804 | 4 | 800 W | 0 V to 32 V | 0 A to 20 A |
NGP814 | 4 | 800 W | Ch1, Ch2: 0 V to 32 V Ch3, Ch4: 0 V to 64 V | Ch1, Ch2: 0 A to 20 A Ch3, Ch4: 0 A to 10 V |
NGP822 | 2 | 400 W | 0 V to 64 V | 0 A to 10 A |
NGP824 | 4 | 800 W | 0 V to 64 V | 0 A to 10 A |
FULL FLEXIBILITY
5" high-resolution touch display
The large high-resolution touch display makes operation easy. Quickly navigate through the menus to access all func-tions and settings. Enter values much faster using the virtual keyboard instead of turning the knob.
The home screen gives you a clear over-view of all your channels. Each channel can be selected for a more detailed view with a wide variety of additional informa-tion, such as statistics and icons indicat-ing the status of set protection or special functions.
FlexPower
Get the maximum power at various operating points. Unlike with single range power supplies, you can gener-ate variable voltage and current combi-nations within the overall power limit of 200 W per channel.
FULL FUNCTIONALITY
Ramp function (EasyRamp)
Output delay
Arbitrary function (QuickArb)
Remote Sensing
Data Logging
Built-in measurements
Save/recall device settings
User button
Graphical view
User adjustment
In The Box:
R&S NGP824COMB DC Power Supply Bundle
Set of Power Cables
Terminal Blocks
Quick Start Guide
R&S NGP824COMB DC Power Supply Bundle FAQs
1. What is the NGP824COMB?
The NGP824COMB is a bundled version of the NGP824 that includes additional automation and control options for advanced test applications.
2. What output capabilities does the NGP824COMB provide?
The system provides four isolated outputs rated at up to 64 V and 10 A each, with a total output power of 800 W.
3. What additional functionality is included with the NGP824COMB?
The package includes enhanced control features such as Digital Trigger I/O and Analog Input capabilities for automated test environments.
4. Can the NGP824COMB be integrated into ATE systems?
Yes. The included automation features and standard LAN/USB interfaces make it well suited for production and automated test systems.
5. What advantages does the NGP824COMB offer over the standard NGP824?
The NGP824COMB provides expanded triggering, synchronization, and external control capabilities out of the box, reducing setup time for automated applications.
