Series Features:

• Specifically designed for for use in high power LCD, TFT and Solar processing and other precision high power applications up to 50 kW
• +/-2% accuracy at specified frequencies and power levels minimizing poor production yields
• Models do not need to be field calibrated before use and only need to be calibrated once every year
• Plug and Play with the 4421A Series Multifunction Power Meter
• Dozens of connector options available
• Calibration traceable to the National Institute of Standards and Technology

For Use With:

• 4421A Multifunction Power Meters
• SCC8 Calibration Cart

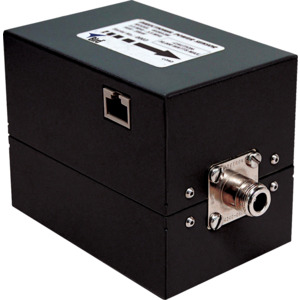

The Bird 4028 Series RF Directional Thruline Power Sensors are designed specifically for use for use in high power LCD, TFT and Solar processing as well as other precision high power applications. Because accuracy is critical, these sensors are capable of +/-2% accuracy at the calibrated frequency and power level which can improve accuracy and long-term repeatability for significant improvements on your process yields.

Multiple sensor models are available for measurement applications from 1 kW to 25 kW to over a 250 kHz to 30 MHz frequency range. Calibration is traceable to the National Institute of Standards and Technology (NIST), providing additional confidence in sensor measurement.
