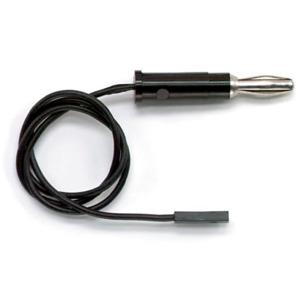

4771 Square Pin Receptacle To Banana Plug

Features:

• This patch cord is excellent for use as a jumper on circuit cards with 0.6 (.025) sq. pins and equipment with 4.2 (.166) dia. pin jacks.
• Conn.: In-Line Banana Plug. Material: The spring will be Beryllium Copper and the Plug Body be brass with Nickel plated finish.
• Conn: 0.64 (.025) Square Pin Receptacle. Material: Phosphor bronze with Gold plated finish.

Highlights:

• Cable: 22 AWG Wire, 0.064in (1.63mm) O.D.
• Excellent as a jumper on circuit cards with 0.6 (.025) sq. pins and equipment with 4.2 (.166) dia. pin jacks
• Mates to Model numbers 5790, 4521, and 5360
• Standard Colors: 4771-0 (Black), 4771-2 (Red)

Note: (1.63mm) O.D. Rating: For CE compliance and for personal safety, do not hold in hand when voltages exceed 30 Vrms/ 42.4 Vpk/60 Vdc or current exceeds 8A maximum. Maximum voltage for hands free use: 30 Vrms/42.4 Vpk/ 60 Vdc or current exceeds 8A maximum. Do not use on circuits where transient stresses can exceed the rated voltage. 3A, +122F (+50C) max.
