FLUKE-1773/BASIC Three-Phase Power Quality Analyzer (No probes)

The 1773 Three-Phase Power Quality Analyzer (PQA) is a rugged, portable tool designed for fast, easy power quality troubleshooting. With automatic measurements, an intuitive interface, and streamlined setup, it simplifies power quality studies without compromising on performance. Its compact design and ability to draw power directly from the measurement line make it ideal for both live diagnostics and long-term logging.

As the entry-level model in the 1770 Series, the 1773 is built for users who need reliable power quality analysis without the advanced transient capture or built-in wireless connectivity found in the 1775 and 1777 models. While it doesn’t include WiFi or LTE, it supports USB, Ethernet, and WiFi Direct for flexible data transfer. Users can also add wireless capabilities through external modules, allowing the device to adapt to different environments and evolving needs.

Features

• Automatically measure power and power quality parameters

• At-a-glance power quality health for faster troubleshooting

• Easily view V/A/Hz, power, dips, swells, and harmonics data

• Power directly from measurement circuit without a line cord

• 2 auxiliary measurement inputs for measurements of non-electrical units: temperature, humidity, light intensity

• Simple data downloads using USB memory stick, wired Ethernet, USB cable or optional WiFi, LTE modules

• Data Storage via 8 GB Internal

• User-accessible micro SD slot for flash memory expansion

• 7-inch TFT, 1024 x 600 pixels with capacitive touch

• Compliant to international standards: IEC 61000-4-30 Class A edition 3, conformance to EN 50160 and IEEE 519

• Integrated internal power supply with 90-minute battery

• Standard with the powerful Fluke Energy Analyze Plus software




Note: BASIC models do not include current probes or WiFi/BLE adapters.

Current Inputs Specs

• Number of inputs: 4 inputs 3 phases and Neutral, range selected automatically to attached sensor

• Range AC (probe/clamps sold separately):

  • 1 A to 1500 A with i17XX-FLEX1500 12 inch

  • 1 A to 1500 A with i17XX-FLEX1500 24 inch

  • 3 A to 3000 A with i17XX-FLEX3000 24 inch

  • 6 A to 6000 A with i17XX-FLEX6000 36 inch

  • 40 mA to 40 A with clamp i40s-EL

  • 4 A to 400 A with clamp i400s-EL

• Range DC (probe/clamps sold separately):

  • 20 A to 2000 A with 80i-2010-EL clamp

• Bandwidth: DC to 30 kHz

• Resolution: 24-bit synchronous sampling

• Sampling frequency: 80 kS/s at 50/60 Hz

• Scaling: 1:1, variable

• Input voltage:

  • Clamp: 50 mV / 500 mV rms; CF 2.8

  • Rogowski Coil: 15 mV / 150 mV rms at 50 Hz, 18 mV / 180 mV rms at 60 Hz

• Input impedance: 11 kilohm

Voltage Input Specs

• Number of inputs: 4 inputs, 3 phases and neutral referenced to PE

• Measurement category: 1000 V CAT III / 600 V CAT IV

• Maximum input voltage: 1000 V rms / 1000 V dc (1700 Vpk)

• Input impedance: 10 Mohm (P-P & P-N), 5 Mohm (P-PE & N-PE)

• Bandwidth: DC to 30 kHz for PQ measurements, excluding transients

• Resolution: 24-bit synchronous sampling

• Sampling frequency: 80 kS/s at 50/60 Hz

Automatic Measurement Capture

The analyzer's system automatically records over 500 power quality parameters by default, ensuring you always gather the right data. You still have the flexibility to fine-tune and select specific parameters as needed. A guided setup simplifies configuration, and with Fluke Energy Analyze Plus software, you can instantly view, download, and share logged data—no need to wait until the session ends

Reliable Measurement Confidence

The built-in ‘PQ Meter’ function provides real-time data on-site, helping you quickly spot issues during troubleshooting. The ‘PQ Logging and Analysis’ feature walks you through setup, making complex power quality studies easier. Combined with an automatic connection correction feature, you can trust your measurements are accurate the first time—no need for repeat visits.

Harmonics Compliance Monitoring

When data is downloaded, the Energy Analyze Plus software can compare harmonic data against standards like EN 50160 or IEEE 519 to determine if they exceed compliance limits. This helps detect current harmonics before they distort voltage, allowing for proactive maintenance and improved system reliability—especially important with the rise of inverter-based systems.

Energy Loss in Real Money

The Energy Loss Calculator (ELC) mode identifies where energy is being wasted in your system using Fluke’s patented Unified Power calculation, translating inefficiencies into actual financial losses.

Wasted energy comes from:

• Transmission of effective power – Heat generated as power flows through cables

• Reactive power – Does not drive the load but consumes energy

• Unbalance losses – Unbalanced loads contribute to wasted energy

• Distortion power – Non-linear loads create harmonics that consume power, but do not perform work

• Neutral losses – Neutral losses can be due to both unbalance and harmonics, leading to increased heat and requiring larger conductors

Powerful Analysis Software with Easy-to-Create Reports

Energy Analyze Plus helps you evaluate power quality data right out of the box and without extensive training. It makes downloading, analyzing, tracking, and reporting power quality and energy data easier than ever. Quickly compare results to historical values, benchmark against industry norms, compare measured data to local conditions, and create a more complete picture of what’s occurring across your facility—all while data is still being collected.

1770 Series of Power Quality Analyzers

The Fluke 1770 Series is built for safety and ease of use in any testing environment. It captures a comprehensive range of power quality parameters, including fast waveforms, transients, and high-frequency harmonics. These analyzers are suitable for both service entrance and downstream applications, handling both AC and DC inputs and measuring harmonics up to 30 kHz. No matter the job, make informed decisions with the use of the 1770 Series.

1770 Series Front Panel

1. Power ON/OFF

2. Touch screen

3. Status LEDs Current and Voltage

4. Cursor controls

5. Select

6. Back

7. Menu

8. Screen Capture

1770 Series Connector Panel

1. Ethernet

2. Power Supply Input 600 V 50/60 Hz 40 VA

3. Voltage measurement inputs (3 phases + N)

4. Earth/Ground measurement input

5. Auxiliary 1/2 Input

6. FieldSense input

7. Current measurement inputs (3 phases + N)

8. USB-C connector

9. USB 2.0 Type-A connector

10. LTE Communications expansion port (Part#:5280642)
    Supports radio antenna (Part#:6006803)

11. WiFi/BLE port (Part #:5280639)
    Supports external 2.4 GHz/5 GHz WiFi antenna

12. GPS antenna (Requires: active 3.3 V or passive antenna type and GPS, GLONASS Satellite system)

What's in the Box

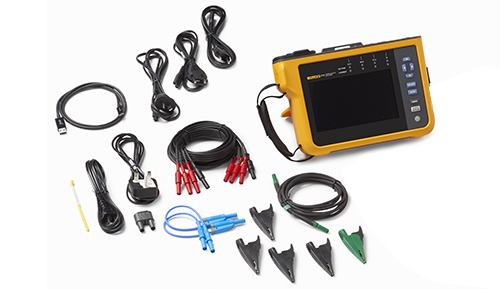

1773-BASIC contents:

• FLUKE-1773 Power Quality Analyzer

• FLUKE-17XX flat cable voltage test lead 3-phase+N

• AC285 black alligator clips (set of four)

• AC285 green alligator clip

• Black 1M USB-C cable

• Line cords (US, EU, UK, AUS, BRA)

• FLK-17XX 0.18M test lead set

• Green test lead

• Cable marker set (for voltage and current)

• FLUKE-174X-MA-C8 wall outlet adapter
