Pomona

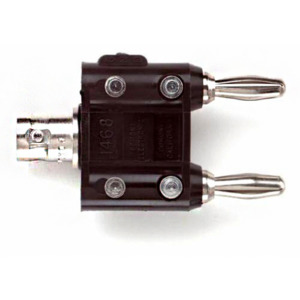

Pomona 1468 BNC (F) To Double Banana, Solder Turret, Polypropylene, Black, 1468 Series
Our Part #35033.1
Mfr Part #1468
Pomona
Pomona 1468 BNC (F) To Double Banana, Solder Turret, Polypropylene, Black, 1468 Series
Our Part #35033.1
Condition:New
Mfr Part #1468
$43.99EACH
Condition:New
- Description
- Specifications
- Documents
- Permits BNC male to be used with equipment having double banana jacks.
- Provides isolation for a four-terminal network.
- Excellent for matching pad networks.
- Bright tin plated solder turret terminals for permanent noise-free connections
- Upper Conn - BNC Female Finish: Body and Fittings – Tarnish resistant.
- Nominal Impedance: 50 Ohms. Center Contact – Gold plated per requirements of MIL-C-39012.
- Insulation: Polypropylene molded to BNC Female and banana plug bodies.
- Lower Conn: Double Banana Plug, Spring comes with Beryllium Copper per QQ-C-533, Alloy 172, Cond. HT.
- Plug Body comes with Brass per QQ-B-626, Alloy 360, ½ Hard.
- Finish comes with Nickel Plated per QQ-N-290, Class 2, 200/300 microinches.
Brand: Pomona
Series: 1468 Series
Voltage: 500 V
Color: Black
Contact Finish: Gold Plated
Impedance: 50 Ω
Insulation Material: Polypropylene
Maximum Temperature: 131°F
Termination Type: Solder Turret
$43.99EACH
