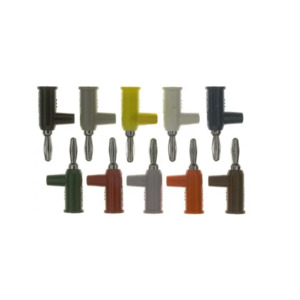

Pomona 6545 Banana Plug w/Safety Collar, 15 A, 5000 V, 18 -22 AWG, Brass, Nickel Plated
Our Part #35284.1
Mfr Part #6545
Pomona
Pomona 6545 Banana Plug w/Safety Collar, 15 A, 5000 V, 18 -22 AWG, Brass, Nickel Plated
Our Part #35284.1
Condition:New
Mfr Part #6545
$EACH
Quantity on Order:5
- Description
- Specifications
- Documents
- Designed to fit on the end of any 22 AWG to 18 AWG wire.
- Cross hole wire entry fits wires up to .12” (3mm) diameter.
- Available with tarnish resistant nickel or gold plating for very low contact resistance.
- Set screw simplifies assembly of test leads and jumpers by using a flat blade screwdriver.
- Fits standard panel and binding post banana jacks .161” to .166” (4,0mm to 4,2mm) diameter.
Brand: Pomona
Voltage: 5000 V
Current: 15 A
Finish: Nickel Plated
Insulation: Polypropylene
Material: Zinc Die Cast
Maximum Temperature: 122°F
Termination Type: Solderless and Stackable
Wire Size AWG: 18-22 AWG
