Pomona

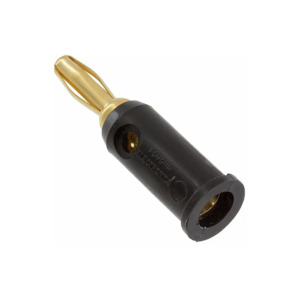

Pomona 5406-0 Banana Plug, Solderless & Stackable, 15 A, 5000 V, Black, 5406 Series
Our Part #35326.1
Mfr Part #5406-0
Pomona
Pomona 5406-0 Banana Plug, Solderless & Stackable, 15 A, 5000 V, Black, 5406 Series
Our Part #35326.1
Condition:New
Mfr Part #5406-0
$6.29EACH
- Description
- Specifications
- Documents
- Designed to fit on the end of any 22 AWG to 18 AWG wire.
- Cross hole wire entry fits wires up to .12” (3mm) diameter.
- Available with tarnish resistant nickel or gold plating for very low contact resistance.
- Set screw simplifies assembly of test leads and jumpers by using a flat blade screwdriver.
- Fits standard panel and binding post banana jacks .161” to .166” (4,0mm to 4,2mm) Dia.
Brand: Pomona
Series: 5406 Series
Voltage: 5000 V
Color: Black
Current: 15 A
Finish: Gold Plated
Insulation Material: Polypropylene
Material: Brass
Maximum Temperature: 122°F
Termination Type: Solderless and Stackable
Wire Size: 18-22 AWG
$6.29EACH
