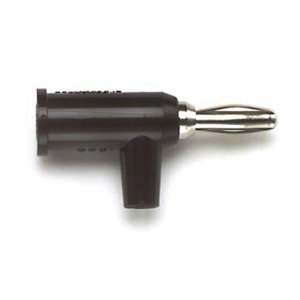

Pomona 1825-8# Banana Plug, Solderless & Stackable, 15 A, 5000 V, Gray, Bulk, 1825 Series
Our Part #35509.1
Condition:New
Mfr Part #1825-8#
$3.19Each-EA
- Description
- Specifications
- Documents
- Designed to fit on the end of any 22 AWG to 18 AWG wire.
- Cross hole wire entry fits wires up to .12” (3mm) in diameter.
- Available with tarnish resistant nickel or gold plating for very low contact resistance.
- Set screw simplifies assembly of test leads and jumpers by using a flat blade screwdriver
- Fits standard panel and binding post banana jacks .161” to .166” (4,0mm to 4,2mm) diameter.
Brand: Pomona
Series: 1825 Series
Color: Gray
Current: 15 A
Finish: Nickel Plated
Insulation Material: Polypropylene
Material: Zinc Die Cast
Maximum Temperature: 122°F
Termination Type: Solderless and Stackable
Voltage: 5000 V
Wire Size: 18-22 AWG
$3.19Each-EA
