Pomona

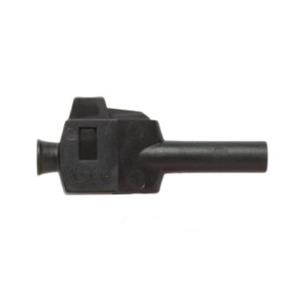

Pomona 73091-0 Banana Plug, 4mm Sheathed, 20 A, Brass, Nickel Plated, Black, 73091 Series
Our Part #35649.1
Mfr Part #73091-0
Pomona
Pomona 73091-0 Banana Plug, 4mm Sheathed, 20 A, Brass, Nickel Plated, Black, 73091 Series
Our Part #35649.1
Condition:New
Mfr Part #73091-0
$10.99EACH
- Description
- Specifications
- Documents
- Attach wires quickly with the push-button tab for easy assembly or test lead repair
- No soldering or set screws required; simply, push and hold the push tab, insert the stripped test lead wire (strip 4-6mm of insulation), and release the push tab to secure the wire down
- Banana plug contact is sheathed for higher voltage and added protection
- Make 4mm banana plug test leads conveniently in the field
- Designed to fit on the end of any 22 AWG to 18 AWG wire gauge
Brand: Pomona
Series: 73091 Series
Voltage: 600 V
Color: Black
Contact Finish: Nickel Plated
Contact Material: Brass, Steel
Current: 20 A
Insulation Material: Polypropylene, Polyoxymethylene
Resistance: 10 MΩ
Safety Rating: CAT2 | CAT3
Wire Size: 18-22 AWG
