Pomona

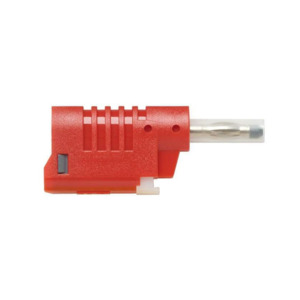

Pomona 73093-2 Banana Plug, Retractable Sheath, Stackable, 36 A, Nickel Plated, Red, 73093 Series
Our Part #35657.1
Mfr Part #73093-2
Pomona
Pomona 73093-2 Banana Plug, Retractable Sheath, Stackable, 36 A, Nickel Plated, Red, 73093 Series
Our Part #35657.1
Condition:New
Mfr Part #73093-2
$12.99EACH
- Description
- Specifications
- Documents
- Attach wires quickly with the push-button tab for easy assembly or test lead repair
- No soldering or set screws required; simply, push and hold the push tab, insert the stripped test lead wire (strip 4-6mm of insulation), and release the push tab to secure the wire down
- Great in low voltage applications where prototyping and quick wire attachments are important
- Stackable for chaining additional connections and test versatility
- The retractable sheath allows for interfacing either sheathed or unsheathed 4mm banana jacks
- Make 4mm banana plug patch cords conveniently in the field
- Designed to fit on the end of any 22 AWG to 18 AWG wire gauge
Brand: Pomona
Series: 73093 Series
Voltage: 70 V
Color: Red
Contact Finish: Nickel Plated
Contact Material: Brass, Steel
Current: 36 A
Insulation: Polyamide, Polypropylene, Polyoxymethylene
Resistance: 10 MΩ
Termination Type: Stackable
Wire Size AWG: 18-22 AWG
$12.99EACH
