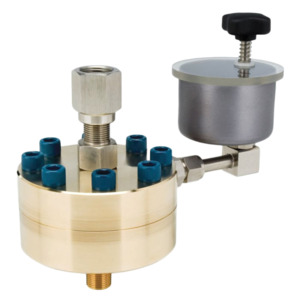

Fluke P5522-50M Liquid-to-Liquid Separator

Features and Specifications

• 0 to 7,000 psi (480 bar) for Skydrol and other aggressive fluids
• Calibrator Connection: 3/8 BSP male (mating adapter supplied)
• Body Material: Aluminum bronze
• Diaphragm: 5521- Viton 5522-Ethylene Propylene
• Reservoir Material: Hard-anodized aluminum

The 5522 liquid-to-liquid separator connects directly to the test port of a hydraulic deadweight tester or comparison test pump. A flexible diaphragm separates the fluids, protecting the calibrator from contamination and allows calibration of the device in its specific working fluid.

What's in the Box

• P5522-50M Liquid-to-Liquid Separator
