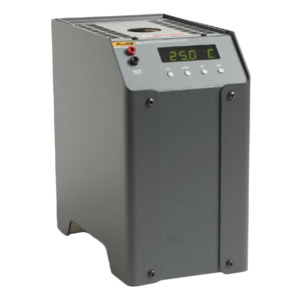

Fluke 9103-B-156 Calibration Field Dry-Well, Insert B

9103 Features and Specifications

• Range: –25 to 140 Celsius (–13 F to 284 F) at 23 C ambient
• Stability: +/-0.02 C at –25 Celsius, +/-0.04 C at 140 Celsius
• Heating times: 18 minutes from ambient to 140 C
• Cooling times: 20 minutes from ambient to –25 C
• Stabilization time: 7 minutes
• Immersion depth: 124 mm (4.875 in)
• Power: 115 V AC (+/-10%), 1.3 A or 230 V AC (+/-10%), 0.7 A, switchable, 50/60 Hz, 150 W
• Lightweight and very portable
• Accuracy to +/-0.25 Celcius
• RS-232 and Interface-it software included
• Easy to recalibrate

Insert B Specifications

• Comparison block holes: two wells each of 3/8, 1/4, and 3/16 inches in diameter
• Material: aluminum

9103 Overview

Hart dry-wells like the 9103 are easy to calibrate. You don't even have to open the case. This means less maintenance costs and less down time when they do need calibration.

Fluke's Interface-it software lets you adjust set-points and ramp rates, log dry-well readings to a file, create an electronic strip chart, and perform thermal switch testing with data collection. The software is written for Windows and has a great graphical interface.

The 9103 covers below-ambient temperatures as low as –25 Celsius. The 9103 is stable to +/-0.02 Celsius, and its display is calibrated to an accuracy of +/-0.25 Celsius at all temperatures within its range. In just eight minutes, 0 degree Celsius is reached, and 100 Celsius is reached in six minutes, so your time is spent calibrating—not waiting.

The 9103 reaches temperatures 50 Celsius below ambient, so –25 Celsius is reached under normal ambient conditions. Our competitors like to advertise their units as reaching –45 Celsius when they really mean -45 Celsius below ambient, which typically means it will go to –20 Celsius. Our unit does not require you to work in a walk-in freezer to achieve its full advertised range.

About Inserts

Removable inserts are sized for probes from 1/16 inch to 1/2 inch in diameter. Insert A handles a full range of probe sizes with a single well of each size. Insert B features two wells each of 3/8, 1/4, and 3/16 inches in diameter for doing comparison calibrations. Insert C has six 1/4-inch-diameter wells for multiple probe calibrations, and Insert D has three pairs of metric sized wells.

What's in the Box

• 9103-B-156 Calibration Field Dry-Well w/ Insert B
• Power Cord
• Insert Removal Tongs
• 9930 Software
• Serial Cable
• Manual
