Fluke Networks DSX-602 Cable and Antenna Analyzer, 500MHz, 5.7" LCD/Wi-Fi, DSX Series

Fluke Networks DSX-602 Cable and Antenna Analyzer with WiFi

The DSX-602 CableAnalyzer main and remote unit with WiFi is a rugged, hand-held tester that lets you certify, troubleshoot, and document copper network cabling. No tester offers so much speed for so many tests. Complete copper certification to Cat 6A in 10 seconds. Quickly get a Pass or Fail result and easily review individual test parameters by value or drill into specific area on a graph.

Features and Benefits

• Testers certify twisted pair cabling to Cat 6A/Class EA limits (500 MHz) in less than 10 seconds.
• Gives a PASS or FAIL result based on a test limit that you specify.
• Saves approximately 12,700 Cat 6A Autotest results, with plot data, in the tester’s internal memory and supports saving to a removable flash drive.
• Taptive user interface lets you quickly navigate through different views of the results and see more information about cables.
• ProjX management system lets you set up projects to specify the types of tests and the cable IDs necessary for a job and monitor the progress and status of the job.
• Connect the tester to a wired or Wi-Fi network and use the LinkWare Live web application to manage your projects from a desktop or mobile device.
• LinkWare PC software lets you upload test results to a PC and make professional-quality test reports.
• LinkWare Stats software makes browsable, graphical reports of cable test statistics.

Specifications

• Performance: 9 second Cat 6/Class E and 10 second Cat 6A/Class EA test time contributes to the fastest way to submit your certification results
• Display: 5.7-inch LCD with capacitive touchscreen
• Ports: RJ45 connector, Micro-AB USB and Type A
• Shielded and Unshielded Pair LAN Cabling: TIA Category 3, 4, 5, 5e, 6, 6A: 100 Ω ISO/IEC Class C, D, E, EA: 100 Ω and 120 Ω
• Test Standards:
  • TIA - Category 3, 5, 5e, 6, 6A per TIA 568-C.2 or TIA-1005
  • ISO/IEC - Class C and D, E, EA certification per ISO/IEC 11801:2002 and amendments
  • IEEE 802.3 - 10BASE-T, 100BASE-TX, 1000BASE-T, 10GBASE-T
• Maximum Frequency: 500 MHz
• Battery Life: 8 hours
• Integrated Wi-Fi: Meets IEEE 802.11 a/b/g/n; dual band (2.4 GHz and 5 GHz)

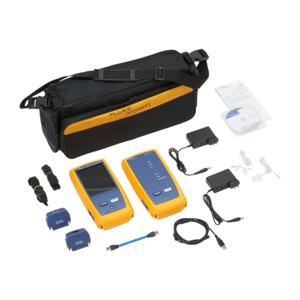

What's in the Box

• DSX-602 CableAnalyzer Main & Remote
• Cat 6A/ Class EA channel adapters (2)
• 6-inch (15 cm) RJ45 reference patch cord (1)
• Soft Carrying case
• USB cable for PC communications
• AC adapters (2)
• DSX-602 Getting Started Guide
