Fluke Networks TS30 Test Set w/ ABN

Features and Specifications

• Line Current Range of 15 mA to 120 mA
• Resistance to Continuous Current (Talk Mode) 275 ohm typical at 20 mA
• DTMF Output Tone Frequencies Tone Frequency Error per ITU-T Q.23 ±1.5% Maximum
• Angled Bed-of-Nails Cord (ABN) Clips
• High-impedance DataSafe operation in monitor mode
• Over voltage and current protection
• RainSafe - safe in severe weather conditions
• DropSafe - passes 20 foot (6 meter) drop test onto concrete
• Housing is made of high-impact plastic

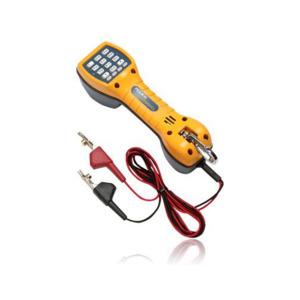

The TS30 Test Set is a portable handset used by installers, repair technicians and other authorized personnel for testing of telephone lines and for temporary communications. The TS30 is powered by the telephone line. It does not require any batteries.

The TS30 comes with a line cord for connecting the test set to telephone lines. This line cord consists of one red and one black insulated conductor, each approximately 1.5 meters long. Each clip is covered with a neoprene boot to prevent the clips from causing electrical shorts.

TS Professional Series

The TS Series of Telephone Test Sets consists of models with varying features. They provide superior quality at an affordable price.

*TS120 for outside North America only. 67/33 break/make ratio.

What's in the Box

• TS30 Test Set w/ ABN
