FLUKE-154 US/CAN HART Calibration Assistant

Features and Specifications

• Full HART Device Description (DD) support of all HART devices
• Configure HART devices
• Perform HART trim on hart devices when used with a Fluke 750, or 720 series calibrator
• Monitor device PV, SV, TV, QV and other measured HART variables
• Convenient wireless connectivity to HART modem
• Easy to use, fast connect and view HART data
• Store HART device confi gurations
• Long range wireless communication up to 250 feet
• Multiple language support

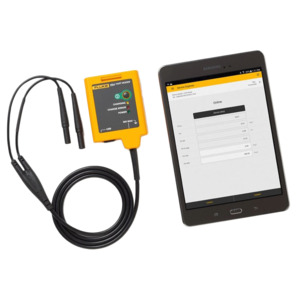

The Fluke 154 is a self-contained HART communication tool that operates on a tablet. The tablet, equipped with the "FlukeHART" mobile app, uses a wireless HART modem to directly connect to the HART transmitter that is being tested or configured. When you pair your Fluke 154 HART Calibration Assistant with a Fluke 750 Series Documenting Process Calibrator or a 720 Series Multifunction Process Calibrator, you get a comprehensive HART calibration and configuration solution.

The 154 makes HART device configuration readily accessible. The user interface, based on an Android™ tablet, simplifies HART configuration. The external wireless modem enables you to connect the modem to the transmitter being tested, allowing remote communication with the device. HART transmitters are often located in confined or hard-to-reach spaces. The Fluke 154 minimizes the need to stand directly next to the device being tested or configured, enabling you to work from a safer and more convenient location.

What's in the Box

• Wireless HART Modem and tablet
• Configurable connection cable
• Hook clips
• Extended tooth alligator clips
• Rechargeable lithium-ion battery
• Hard side case
