Fluke 700HTH-1 Hydraulic Test Hose

Features and Specifications

• Hose and fittings connect directly to the Fluke 700HTP-1 test pressure port
• Includes plugs and caps to eliminate fluid loss in hose, eliminates the need to re-prime the hose
• Self-sealing fittings with easy finger tight connections
• Low volumetric expansion and a negligible pressure drop at rated pressures
• Dimensions .84 m (33 in) long without adapter fittings
• Minimum bend radius: 60 mm / 2.36 in.
• Temperature: - 40 C to +120 C, ( -40 F to +250 F)
• Maximum pressure: 690 bar / 10,000 psi
Fluids: water, mineral-based hydraulic oil

The Fluke 700HTH-1 is a hydraulic test hose designed to withstand pressures up to 10,000 psi or 690 bar. It's built with stainless steel and nylon, making it suitable for connecting a Fluke-700HTP-1 or any other hydraulic test pump to a device being tested.

For application use, the Fluke 700HTH-1 can simultaneously link a Fluke pressure module and a calibration device under test to a Fluke 700HTP-1 hydraulic test pump. It's important to note that the 700HTH-1 is compatible with water and non-corrosive oil.

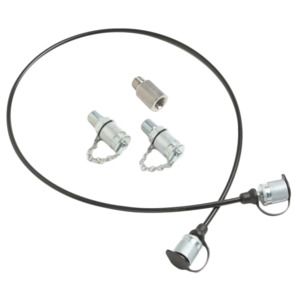

What's in the Box

• 700HTH-1 Hose
• (2) 1/4 in NPT female output connections
• (2) Adapters to convert: 1/4 NPT female to 1/4 in NPT male (include sealing caps)
• (1) 1/4 in NPT female to 1/4 in BSP male adapter
• Instruction sheet
