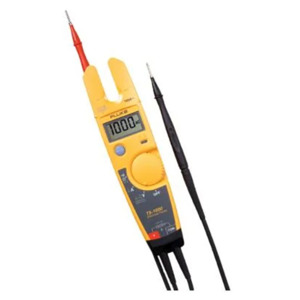

Fluke T5-1000 USA CAL Electrical Tester

Features and Specifications

• Jaw opening of 12.9 mm (0.5 in)
• Current range AC rms of 0 to 100.0 A
• Resistance range of 0 to 1000 ohms
• CAT III 1000V, CAT IV 600 V rating
• OpenJaw design: measure current without breaking the circuit
• Tester automatically selects AC or DC voltage, up to 1000 V
• Measures voltage and continuity with the test leads
• Work in tight spaces with detachable Slim Reach probe tips
• Auto-off mode to conserve battery life
• Withstands a 10 ft. (3 m) drop
• Battery life 200 hour zinc chloride, 400 hour alkaline

The T5-1000 Electrical Tester, with its OpenJaw design, can measure up to 100 A of current without interrupting the circuit. Simply insert the wire into the open fork, and the T5 takes care of the rest. It features a continuity beeper for quick go/no-go tests and can measure resistance up to 1000 ohms. The T5-1000 automatically switches between AC and DC voltage up to 1000 V, making it a versatile tool for troubleshooting at any location. It allows you to check voltage, continuity, and current using just this compact device.

The T5-1000 Electrical Tester is equipped with detachable Slim Reach probe tips, enabling easy operation in confined spaces. You can also use the test lead holder to turn the meter into an "extended handle" for the probe, allowing for hands-free operation.

What's in the Box

• T5-1000 USA Electrical Tester
• A traceable certificate of calibration with data from Fluke
• 4 mm detachable probes
• Instruction sheet
