Fluke T+PRO-1AC KIT Electrical Tester

Features and Specifications

• AC Bandwidth: 45 Hz to 66 Hz
• Maximum working voltage: 1000 V ac/dc
• Maximum measurable voltage: 600 V ac/dc
• GFCI Test current: 100 V - 200 V at 20 mA - 35 mA for 1 s
• Standard input test current: < 5 mA

T+PRO-1AC KIT Overview

The T+PRO-1AC Kit is a combination of two diagnostic devices in a single convenient package. The T+PRO Electrical Tester surpasses the traditional solenoid tester in terms of features, without any of the typical drawbacks. It offers voltage measurement, continuity, an integrated flashlight, GFCI trip functionality, and is known for Fluke's iconic durability and dependability. This makes the tester a superior choice for a wide range of applications, from residential to commercial and industrial. The pocket-sized 1AC-II voltage detector also in the kit can swiftly check for live circuits, making it a must have tool for any electrician. Its voltage detection range is 90 V to 1000 V AC or 200 V to 1000 V AC with a CAT IV rating, making it possible for wide application uses.

T+ Series of Electrical Testers

• 3 forms of ac/dc voltage detection: light, sound, and vibration for added user protection and convenience
• Detect live voltage even when the battery is dead
• Extra heavy-duty, replaceable test leads for more flexibility and durability
• CAT IV 600 V, CAT III 1000 V rated for added user protection
• Continuity beeper
• Bright LED flashlight for work in poorly lit areas
• GFCI Trip
• On/Off switchable beeper, selectable according to your environment
• Auto-off saves battery power
• AC/DC Voltage: 12 V – 600 V on LED bar, 10.2 V - 600 V on LCD (LCD on T+PRO only)

The T+ series electrical testers, both the T+ and T+ PRO, are superior to conventional solenoid testers, with none of the typical drawbacks. They use three voltage detection techniques - visual, auditory, and tactile, enhancing efficiency in loud settings, poorly lit locations, or confined spaces. Features such as an integrated flashlight, the ability to trip GFCI, and Fluke's renowned durability make these testers a prime selection for a wide range of applications, including residential, commercial, and industrial environments.

What's in the Box

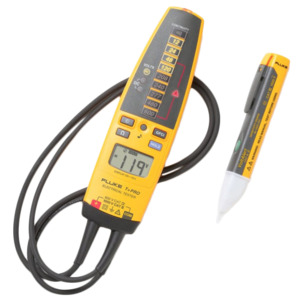

• T+PRO-1AC KIT
  • T+PRO Electrical Tester
  • 1AC II VoltAlert Voltage Detector
  • User manual
  • Test lead wrap
  • TP2 test probes
