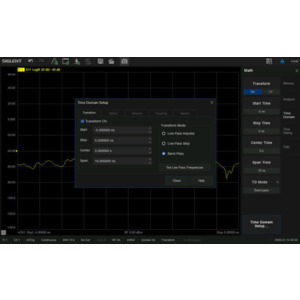

Siglent SNA5000-TDA Time Domain Analysis Software Option, SNA5000A Series

• Compatible with SIGLENT SNA5000A and SNA5000X-E Series Vector Network Analyzers
• License-based option, activated directly on the instrument

The SNA5000‑TDA option adds advanced Time Domain Analysis (TDA) capability to SIGLENT SNA5000A Series Vector Network Analyzers. By converting frequency‑domain S‑parameter data into the time domain, it enables engineers to clearly observe reflections, transmission characteristics, and impedance changes with exceptional detail and accuracy.

This option is particularly well suited for evaluating cables, PCB traces, connectors, fixtures, and other RF structures, delivering intuitive visibility into signal behavior that can be difficult or impossible to discern using frequency‑domain measurements alone.
