Siglent HPB4010 High Voltage Probe, 40MHz, DC/AC, 1:1000

Siglent HPB4010 High-Voltage Probe

Features

• Bandwidth: 40 MHz
• Max. Measurement Voltage: DC 10 kV, AC(rms), 7 kV(sine), AC(Vpp): 20 kV(Pulse)
• Attenuation ratio 1: 1000
• Input Impedance:100 MΩ ±1%
• Input Capacitance:3.0 pF ±0.5 pF
• Cable length: 2.0 meter (±0.2 M)
• Rise Time: ±8.8 ns
• Accuracy: ≤3%
• Dimensions: 19 × 5 × 5 in
• Certificate does not have a traceability statement

The Siglent HPB4010 is a passive high-voltage probe designed for use with any Siglent oscilloscope. It allows you to safely measure high-voltage signals up to 10 kV DC and 20 kV peak-to-peak pulse, featuring a 1000:1 attenuation ratio and a 40 MHz bandwidth.

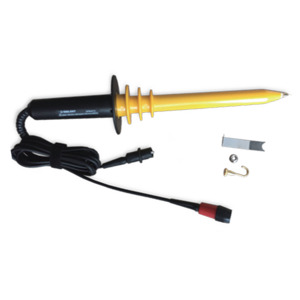

Note: Image is a rendered representation of actual product.
