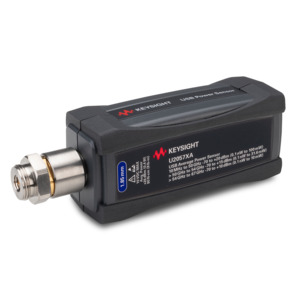

U2057XA/100/U2000A-301 Wide Dynamic Range Average Power Sensor

Configurations:

• (100)
• (U2000A-301) USB cable 5 ft (1.5 m)

Features:

• Frequency Range: 10MHz to 67GHz
• Power Range (Continuous Avg): 70 to +20dBm
• Sampling Rate: 20Msamples/sec
• ≥ 90dB Wide Dynamic Range
• Average mode time selectivity function
• Real time measurement with zero dead time
• Connector Type: 1.85mm
• USB interface

Measure any modulated signal with Keysight's U/L2050/60 X-Series Wide Dynamic Range Power Sensors. These sensor offers very accurate and repeatable power measurements for any modulated signal and comes with a super-fast measurement speed of 50,000 readings/sec, which enables higher manufacturing throughput. Users can also save time and reduce measurement uncertainty with the internal zero and calibration function.

The U/L2050/60 X-Series is supported by BenchVue software, which makes it easy to control your power meter to log data and visualize measurements in a wide array of display options without any programming. Simply connect the sensor to your PC installed BenchVue BV0007B Power Meter/Sensor Control and Analysis app to perform average power measurement and analysis.
