Cal Test Electronics CT4204 Passive Probe, 1.5GHz, 10X, 1.8 pF, 8.5V, CAT2, CT4200 Series
Our Part #41701.1
Condition:New
Mfr Part #CT4204
$190.00Each-EA
| Qty: | Price: | Savings |
|---|---|---|
| 1 | $190.00 | |
| 5 | $186.20 | Save |
| 10 | $182.40 | Save |
| 25 | $180.50 | Save |
- Description
- Specifications
- Documents
Cal Test Electronics CT4204 10:1 1.5 GHz Passive Oscilloscope Probe
Features and Specifications- 1.5 GHz (-3 dB) bandwidth
- 500 Ω // 1.8 pF - input impedance
- 8.5 V
- 1.3 m cable length
- Equipped with Readout Actuator
- Snap-Locking Sprung Hook
- Easily replaceable screw-on rigid and spring tips
- Large accessory set
- Meets IEC 61010-031
- RoHS compliant
The CT4200 Series is a high quality, easy to use family of 2.5 mm Passive Voltage Oscilloscope probes in stylish, slim-line bodies. The series features superior input impedances for enhanced measurement performance when compared to other oscilloscope probes. Replacement for Keysight N2874A.
Model CT4204 is a 10x passive voltage probe with 500 Ω input impedance.

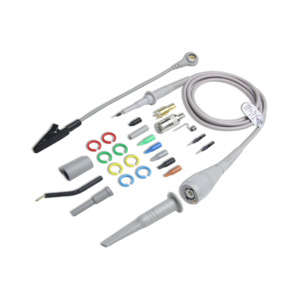

What's in the Box- Ground Lead w/ Alligator Clip
- Rigid Probe Tip, Qty 2
- Short Collar, 2.5 mm
- Sprung Hook, 2.5 mm
- Long Collar, 2.5 mm
- IC Tip Insulators, 2.5 mm,Qty 5
- Tip insulator, 2.5 mm
- Probe Tip Cover, 2.5 mm
- BNC Adapter, 2.5 mm
- Swivel Ground Lead
- Swivel Ground Lead Adapter
- Ground Spring, 2.5 mm
- PCB Adapter, 2.5 mm
- Spring Tip, 2.5 mm
- Color Coding Rings (Blue, Green, Red, Yellow), 2 Each
Brand: Cal Test Electronics
Bandwidth: 1.5 GHz
Attenuation: 10X
Input Capacitance: 1.8 pF
Maximum Input Voltage: 8.5 V
Cable Length: 1.3 m
Safety Rating: CAT2
Series: CT4200 Series
