Cal Test Electronics CT4205 Passive Probe, 500MHz, 20X, 7.6 pF, 300V, CAT2, CT4200 Series
Our Part #41702.1
Condition:New
Mfr Part #CT4205
$165.00Each-EA
| Qty: | Price: | Savings |
|---|---|---|
| 1 | $165.00 | |
| 5 | $161.70 | Save |
| 10 | $158.40 | Save |
| 30 | $156.75 | Save |
- Description
- Specifications
- Documents
Cal Test Electronics CT4205 20:1 500 MHz Passive Oscilloscope Probe
Features and Specifications- 500 MHz (-3 dB) bandwidth
- 20 MΩ // 7.6 pF - input impedance
- 7-25 pF compensation range
- 300 V CAT II
- 1.3 m cable length
- Equipped with Readout Actuator
- Snap-Locking Sprung Hook
- Easily replaceable screw-on rigid and spring tips
- Large accessory set
- Meets IEC 61010-031
- RoHS compliant
The CT4200 Series is a high quality, easy to use family of 2.5 mm Passive Voltage Oscilloscope probes in stylish, slim-line bodies. The series features superior input impedances for enhanced measurement performance when compared to other oscilloscope probes. Replacement for Keysight N2875A.
Model CT4205 is a 20x passive voltage probe with 20 MΩ input impedance.

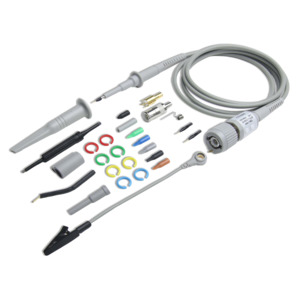

What's in the Box- Ground Lead w/ Alligator Clip
- Rigid Probe Tip, Qty 2
- Short Collar, 2.5 mm
- Sprung Hook, 2.5 mm
- Trimmer Tool
- Long Collar, 2.5 mm
- IC Tip Insulators, 2.5 mm,Qty 5
- Tip insulator, 2.5 mm
- Probe Tip Cover, 2.5 mm
- BNC Adapter, 2.5 mm
- Swivel Ground Lead
- Swivel Ground Lead Adapter
- Ground Spring, 2.5 mm
- PCB Adapter, 2.5 mm
- Spring Tip, 2.5 mm
- Color Coding Rings (Blue, Green, Red, Yellow), 2 Each
Brand: Cal Test Electronics
Bandwidth: 500 MHz
Attenuation: 20X
Input Capacitance: 7.6 pF
Maximum Input Voltage: 300 V
Cable Length: 1.3 m
Safety Rating: CAT2
Series: CT4200 Series
