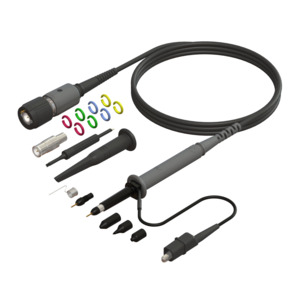

Cal Test Electronics GE4511RA 100:1 100 MHz Passive Oscilloscope Probe

• 500 MHz (-3 dB) bandwidth
• High impedance input (10 MΩ/≈ 10 pF)
• 6-22 pF compensation range
• Readout actuator pin
• 500 V CAT II
• Slim, stylish body
• Snap-Locking Sprung Hook
• Easily replaceable tip
• Large accessory set
• Meets IEC 61010-031
• RoHS compliant

Model GE4511RA is a high bandwidth, high impedance 10x passive voltage probe with 10 MΩ input impedance. Probe features a readout actuator pin (sense pin) on the BNC connector.

The GE Series is a high quality, easy to use family of 5 mm Passive Voltage Oscilloscope probes in stylish, slim-line bodies. The series features superior input impedances for enhanced measurement performance when compared to other oscilloscope probes.

The series is marketed under the time-honored Elditest brand name in both North America and the European Union.

• Sprung Hook, 5 mm, Red
• GND Lead w/Alligator Clip
• BNC Adapter, 5 mm
• Replacement Tip, Black
• Deluxe Trimmer Tool
• IC Tip Insulator, 5 mm, Black
• Tip Insulator, 5 mm, Black
• Probe Tip Cover, 5 mm
• Color Coding Rings (Blue, Green, Red, Yellow), 2 Each
• Probe Tip GND
