Cal Test Electronics GE4521 Passive Probe, 480MHz, 10X, 22 pF, 500V, CAT2, 4500 Series

Cal Test Electronics GE4521 10:1 480 MHz Passive Oscilloscope Probe

Features and Specifications

• Attenuation: 10x
• Bandwidth: 480
• Max Input Voltage (DC + AC peak): 500 V CAT II
• Length: 2m

The GE Series probe GE4521 is a high-impedance, passive-voltage oscilloscope probe designed for use with most general-purpose oscilloscopes having an input impedance of 1 megohm shunted by 13 pF, however model GE4521 may be compensated for use with instruments having an input capacitance between 6 to 22 pF.

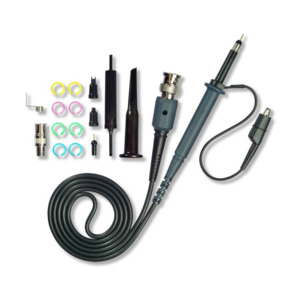

What's in the Box

• CT2709A Sprung Hook, 5 mm, Red - 1
• CT2710-12-0 GND Lead w/Alligator Clip - 1
• CT2708 BNC Adapter, 5 mm - 1
• CT2711A-0 Replacement Tip, Black - 1
• CT3648 Deluxe Trimmer Tool - 1
• CT2713A IC Tip Insulator, 5 mm, Black - 1
• CT2712A Tip Insulator, 5 mm, Black - 1
• CT4408 Probe Tip Cover, 5 mm, - 1
• CT3662 Color Coding Rings (Blue, Green, Red, Yellow) - 2 each
• 10 CT2714 Probe Tip GND - 1
