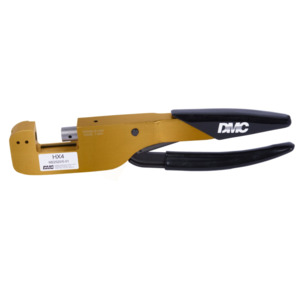

DMC HX4 Open-Frame Crimp Tool, 26 to 10 AWG, For use with Interchangeable Y Dies, HX Series
Our Part #421-361
Condition:New
Mfr Part #HX4
- Description
- Specifications
- Documents
- NSN 5120-01-335-8575
Standard Crimp Tool Frame. Requires a die, there are many choices based on your mil-spec or commercial application. Please call 800-225-5370
Open Frame Crimp Tool
- 26 to 10 AWG
- Enhanced Access
- Y-Die Platform
- Supports Large Components
The DMC HX4 crimp tool features a system of interchangeable dies (accommodates "Y" series dies) which eliminates the need for separate fixed die crimp tools for each and every different application. Many maintenance and production organizations have standardized one of these models, thus eliminating the cost associated with maintaining and calibrating bulky inventories of single-purpose, dedicated tools. Tremendous flexibility and cost advantages exist with this crimping system due to the wide variety of military and proprietary interchangeable dies available for this tool frame. As new requirements evolve, a new set of dies is all that's required to meet the demand. Crimping dies are snapped into the tool frame and retained in place by internal spring clips. They may be permanently secured, if desired, by pressing a roll pin into the holes provided.
The tool frame is equipped with a positive ratchet assembly which controls complete handle movement in both directions. Hexagonal (HEX) crimp dies are available in a variety of combinations having single, double, and even triple cavity design. These dies accommodate most coaxial and triaxial connectors and contacts conforming to MIL-DTL-39012, AS39029, and numerous proprietary configurations. Other designs are available for coaxial connections requiring different termination techniques. Dies in various crimp patterns are also available for insulated and uninsulated terminal lugs, wire splices and end caps relating to M7928, MS17143, MS25036, MS25181, MS27429, MS25274, MS20659, M81824, MS21003 through MS21015, and commercial part numbers. Several power contacts too large for conventional hand tools are also covered by interchangeable dies for the HX4.
