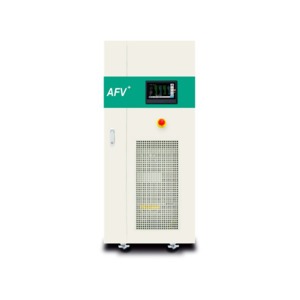

Preen AFV-PLUS-33045 AC Power Source

• Output Power 45 kVA
• Output Voltage 310 V
• Output Current 125 A
• Frequency Range 45-500 Hz
• Three Phase

The AFV+ series is a high power programmable AC power source utilizing advanced PWM technology to deliver power with THD ≤ 0.5% and up to 2000kVA. The output frequency is 45~120Hz with accuracy of ± 0.02%, and user can select 45~500Hz or 300-840Hz option to expand the frequency. The AFV+ series is ideal to simulate different region’s voltage and frequency conditions, and can cover applications for home appliance, motor, medical equipment, lighting and EMC laboratory.

• The built-in STEP and RAMP functions are ideal to simulate different types of power line disturbances
• The SOFT START feature can effectively reduce inrush current caused by motor startup
• Via the Three Phase Independent Adjustment function, the AFV series can deliver each phase voltage differently to multiple single-phase DUTs
• User can simulate phase shift with the optional Phase Angle Control function
• The 7 In. touch screen shows parameters of voltage, current, frequency, real power, apparent power and sum of each phase’s parameters
• CE & RoHS certified
• Optional remote sensing feature is available to improve precision
• *Output Frequency Options:
• AFV-PLUS-001 Type A: Output Frequency 45-500Hz Default Model
• AFV-PLUS-002 Type B: Output Frequency 45-120Hz No longer available
• AFV-PLUS-003 Type C : Output Frequency 300-840Hz Call for Quote
