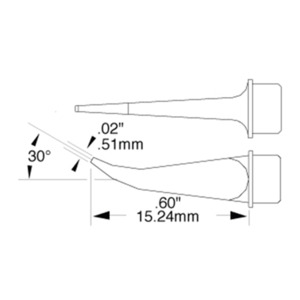

Metcal SMTC-8172 Soldering Tip, Rework, Hook, Bent, 0.51x15.24mm, 30 Angle, 950 F, SMTC-800 Series
Our Part #551SO271
Mfr Part #SMTC-8172
Metcal SMTC-8172 Soldering Tip, Rework, Hook, Bent, 0.51x15.24mm, 30 Angle, 950 F, SMTC-800 Series
Our Part #551SO271
Condition:New
Mfr Part #SMTC-8172
| Qty: | Price: | Savings |
|---|---|---|
| 1 | $63.90 | |
| 3 | $62.62 | Save |
| 10 | $61.98 | Save |
| 25 | $61.34 | Save |
| 100 | $60.71 | Save |
Condition:New
- Description
- Specifications
- Documents
STTC-, SMTC-Solder Tip Cartridges are the standard soldering tip range for the Metcal MX-500, MX-5200 and MX-5200 series soldering systems. All cartridges are available in 3 temperature ranges, 600-series nominally 330 ˚C, 700-series nominally 390 ˚C and 800-series nominally 450 ˚C. The temperature/series is designated by the first digit following the dash in the part number. e.g. 600-series is STTC/SMTC-0xxx, 700-series is STTC/SMTC-1xxx and 800-series is STTC/SMTC-8xxx. Metcal recommends the 700-series for the majority of applications. The 600-series for light load or low temperature applications, 800-series for high temperature and thermally demanding applications. Can be used with leaded and lead-free solder. The Metcal "SmartHeat®-Technology" automatically adjusts power levels during each soldering operation.
