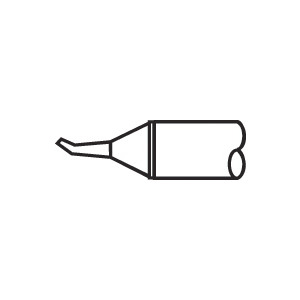

Metcal CVC-7CN0004R Soldering Tip, Conical, 0.4 x 7.9mm, Bent 30 Angle, Sharp, 775 F, 700 Series
Our Part #551SO6060
Mfr Part #CVC-7CN0004R
Metcal CVC-7CN0004R Soldering Tip, Conical, 0.4 x 7.9mm, Bent 30 Angle, Sharp, 775 F, 700 Series
Our Part #551SO6060
Condition:New
Mfr Part #CVC-7CN0004R
| Qty: | Price: | Savings |
|---|---|---|
| 1 | $33.80 | |
| 3 | $33.12 | Save |
| 10 | $32.79 | Save |
| 25 | $32.45 | Save |
| 100 | $32.11 | Save |
- Description
- Specifications
- Documents
- 700 Series - 413 ˚C
- For most standard applications
- For Metcal CV-5200, CV-500, MX-5200, and MX-500 Series soldering system
CVC-, SMC- Solder Tip Cartridges are the standard soldering tip range for the Metcal CV-5200, CV-500, MX-500, MX-5200 and MX-5200 series soldering systems. All cartridges are available in 4 temperature ranges, 600-series nominally 330 ˚C, 700-series nominally 390 ˚C, 800-series nominally 440 ˚C and 900-series nominally 470 ˚C. The temperature/series is designated by the first digit following the dash in the part number. e.g. 600 will all be CVC-/SMC-0xx, 700-series will be CVC-/SMC-7xx, 800-series will be CVC-/SMC-8xx and 900-series will be CVC-/SMC-9xx. Metcal recommends the 700-series for the majority of applications. The 600-series for light load or low temperature applications, 800/900-series for high temperature and thermally demanding applications. Can be used with leaded and lead-free solder. The Metcal "SmartHeat®-Technology" automatically adjusts power levels during each soldering operation.
