Metcal STP-CN04 Soldering Tip, Rework Cartridge, Conical, 0.4mm x 8.6mm, 330 Deg. C, STP Series
Our Part #551SO6509
Condition:New
Mfr Part #STP-CN04
$30.80Each-EA
| Qty: | Price: | Savings |
|---|---|---|
| 1 | $30.80 | |
| 3 | $30.18 | Save |
| 10 | $29.88 | Save |
| 25 | $29.57 | Save |
| 100 | $29.26 | Save |
- Description
- Specifications
- Documents
SxP-Solder Tip Cartridges are the standard soldering tip range for the Metcal MFR-1110, MFR-2210 and MFR-1351-series soldering systems. The second letter in the part number designates the temperature series. The SFP temperature series are nominally 390 ˚C. Metcal recommends the SFP-series for most applications. However, Metcal offers a higher temperature series designated SCP, nominally 450 ˚C, for high temperature and thermally demanding applications. STP-series are nominally 330 ˚C for light load application. Can be used with leaded and lead-free solder. The Metcal "SmartHeat®-Technology" adjusts power levels automatically based on the demand of the application.
Brand: Metcal
Series: STP Series

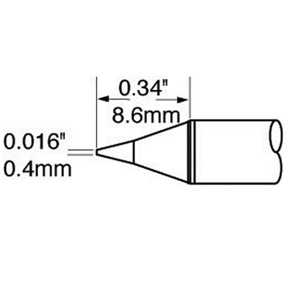

Tip Type: Conical
Tip Diameter: 0.4 mm
Tip Length: 8.6 mm
Temperature Rating: 330°C
Lead Free Solder Compatible: Yes
Angle: 30 Deg.
Applications: Temperature Sensitive
Fits: Metcal MFR-H1-SC Handpiece
For Use With: Metcal MFR-1110, MFR-1161, MFR-2211, MFR-2241 Systems
