Amphenol RF

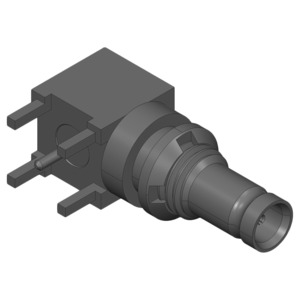

Amphenol RF 102-909-04 RF Connector, 1.0-2.3 Right Angle, Jack, PCB Through Hole, Bulkhead Rear Mount, 50 Ohm
Our Part #55922.1
Mfr Part #102-909-04
Amphenol RF
Amphenol RF 102-909-04 RF Connector, 1.0-2.3 Right Angle, Jack, PCB Through Hole, Bulkhead Rear Mount, 50 Ohm
Our Part #55922.1
Condition:New
Mfr Part #102-909-04
WARNING
RoHS
$7.59EACH
| Qty: | Price: | Savings |
|---|---|---|
| 1 | $7.59 | |
| 200 | $7.44 | Save |
| 500 | $7.21 | Save |
| 1,000 | $7.06 | Save |
Multiples of: 100
Condition:New
Calif. Prop 65
RoHS
- Description
- Specifications
- Documents
1.0-2.3 Connectors
Features and Benefits:
- Patented push-pull coupling mechanism
- Quick connect and disconnect
- Space saving compact design
- Ideal for high vibration applications
DIN 1.0-2.3 connectors are available to perform at 50 ohm with a maximum frequency of 10 GHz as well as 75 ohm with a maximum frequency of 4 GHz. These performance specifications support high data rates for AES Audio, SD video, HD video, 3Gb/s video, and other high density digital broadcast formats. The DIN 1.0-2.3 connector series complies with DIN 41626, DIN 47297, and NFC 93-571 international specifications.
The Amphenol version features a patented ultra-slim push-pull coupling system which allows quick installation and ensures positive locking and high retention.
Applications:
- Base Stations
- Data Communications
- Telecommunications/Central Office
- Routers
- Filters & Wireless Components
- Switching Equipment
- Video Processors
- Encoders
- Cameras
Brand: Amphenol RF
Gender: Jack
Mounting Style: Bulkhead Rear Mount
Termination Type: PCB Through Hole
Impedance: 50 Ohms
Contact Finish: Gold
Contact Material: Beryllium Copper
Finish: Gold
Frequency: 10 GHz
Insulation Material: PTFE
Material: Brass
Orientation: Right Angle
Type: 1.0-2.3 Connectors
$7.59EACH
| Qty: | Price: | Savings |
|---|---|---|
| 1 | $7.59 | |
| 200 | $7.44 | Save |
| 500 | $7.21 | Save |
| 1,000 | $7.06 | Save |
Multiples of: 100
