Amphenol RF

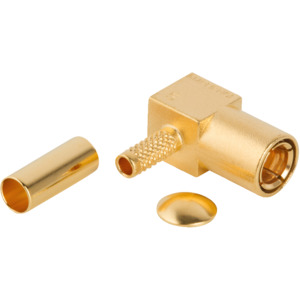

Amphenol RF 903-289P-51A2 RF Connector, SMB Right Angle, Crimp, Plug, 50 Ohms
Our Part #57524.1
Mfr Part #903-289P-51A2
Amphenol RF
Amphenol RF 903-289P-51A2 RF Connector, SMB Right Angle, Crimp, Plug, 50 Ohms
Our Part #57524.1
Condition:New
Mfr Part #903-289P-51A2
WARNING
RoHS
$7.27EACH
| Qty: | Price: | Savings |
|---|---|---|
| 1 | $7.27 | |
| 10 | $7.12 | Save |
| 50 | $6.91 | Save |
| 100 | $6.54 | Save |
| 1,000 | $6.40 | Save |
Condition:New
Calif. Prop 65
RoHS
- Description
- Specifications
- Documents
SMB Connectors
Features and Benefits:
- Quick connect/disconnect snap on mating reduces installation time
- SMB PCB slide-on plug and jack allows board-to-board mounting with a low insertion force
The SMB interface features a snap-on coupling mechanism and is available in 50 ohm configurations. SMB connectors conform to the requirements of MIL-C-39012, and the interface is in compliance with MIL-STD-348. SMB connectors offer broadband performance with low reflection DC to 4 GHz and extended performance up to 10 GHz.
Applications:
- Base Stations
- Antennas
- Radio Boards
- PC/LAN
- Global Positioning System (GPS)
- Instrumentation
- Telecommunications
Brand: Amphenol RF
Gender: Plug
Termination Type: Crimp
Impedance: 50 Ohms
For Use With: RG-174 RG-188 RG-316 Times LMR-100A
Finish: Gold
Material: Zinc Diecast
Orientation: Right Angle
