Bird

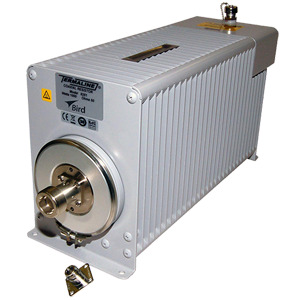

Bird 8251N RF Coaxial Termination, Oil-Cooled, 1000 Watt, 1000 MHz, N Female, 8251 Series
Our Part #58637.1
Mfr Part #8251N
Bird
Bird 8251N RF Coaxial Termination, Oil-Cooled, 1000 Watt, 1000 MHz, N Female, 8251 Series
Our Part #58637.1
Condition:New
Mfr Part #8251N
$2,992.50EACH
- Description
- Specifications
- Documents
- RF Loads are portable, self-contained general purpose 50 ohm coaxial transmission line RF terminations requiring no outside power source or additional equipment
- The loads are Oil-assisted convection cooling for safe, continuous operation up to 1000W full rated power
- They provide accurate, dependable, and practically non-reflective termination for testing and adjusting transmitters under non-radiating conditions
- The load consists essentially of a cylindrical film type resistor immersed in a dielectric coolant
- The resistor, individually selected for its accuracy, is enclosed in a special tapered housing which provides a linear reduction in surge impedance directly proportional to the distance along the resistor
Brand: Bird
Connector Type: N, Female
Frequency: 1000 MHz
Series: 8251 Series
Certifications: RoHS
Dimensions: 18 x 6 x 8.5"
Finish: Gray Powder Coat
Impedance: 50 Ω
Operating Temperature Range: -40-45°C
Power: 1000 W
Special Features: Oil-Cooled
