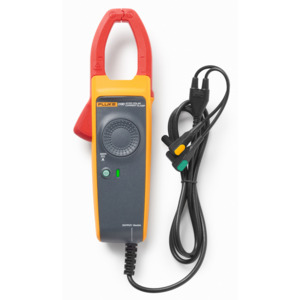

i100 Current Clamp

Specs:

• Load Impedance: ≥1 Megohm, ≤100 pF
• Specified Current Range: 1 A to 100 A dc / 1 A to 100 A ac rms
• Output signal: 10 mV/A AC/DC
• Accuracy (DC, AC 50 Hz/60Hz): +/- (1.5 % + 0.1 A)
• Battery Type (x2): 1.5 V AA (alkaline) IEC LR6
• Battery Life: 50 hr typical
• Jaw Opening: 34 mm
• Cable Length: 150 cm
• Safety: IEC 61010-2-032, Type D (for insulated conductors), 1000 V

Includes: 1-Current Clamp, Magnet, Strap, Safety Guide, Warranty Card
