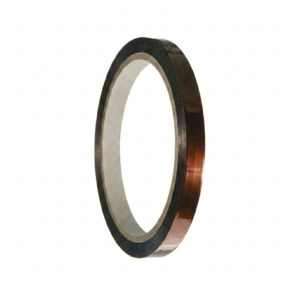

Techni-Pro 700-559 Kapton Tape, 8.5mm x 36 Yds, 3" Core, 2.5 mil, Silicone Adhesive
Our Part #700-559
Condition:New
Mfr Part #700-559
Has Expiration Date
$29.04Roll-RL
| Qty: | Price: | Savings |
|---|---|---|
| 1 | $29.04 | |
| 100 | $28.46 | Save |
| 150 | $27.59 | Save |
| 200 | $26.72 | Save |
Minimum order quantity: 50
Order in multiples of: 50
- Description
- Specifications
- Documents
Techni-Pro Kapton Tape with polyimide backing and silicone adhesive, offers outstanding thermal resistance and provides excellent electrical insulating properties.
This tape is used in applications wherke toughness, puncture resistance, extreme resistance to heat, and flame retardance are required.
Temperature resistant to 500°F
Uses include:
- Protection of gold fingers during wave soldering.
- Acting as a ground barrier and phase insulation in high-performance coils.
- Serving as an outer wrap on small bobbin wound coils.
- Application on form wound coils for traction motors.
Our products under the brands Techni-Tool, Tec-Cut, Techni-Stat, and many others have merged to one brand, Techni-PRO. All the product specifications and functionality remain the same.
Brand: Techni-Pro
Series: Kapton Series
Type: Kapton Tape
Diameter: 0.334"
Width: 0.334"
Length: 36 yd.
Color: Amber
Adhesive Material: Silicone
Anti Static: No
Applications: Use on Gold Fingers for Protection in Wave Soldering; Ground Barrier and Phase Insulation in High Performance Coils; Outer Wrap on Small Bobbin and Foam Wound Coils for Traction Motors
Core Size: 3"
Material: Polyimide
Shelf Life: 730 days
Thickness: 2.5 mil
