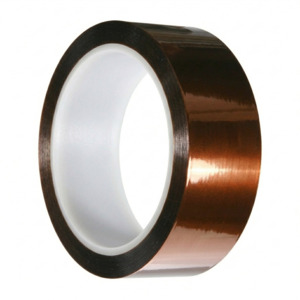

Techni-Pro TST-22-3000 Kapton Tape, 3"x36 Yds, 3" Core, 2.5 mil, Silicone Adhesive

Our Part #TST-22-3000

Mfr Part #TST-22-3000

Techni-Pro TST-22-3000
Techni-Pro

Techni-Pro TST-22-3000 Kapton Tape, 3"x36 Yds, 3" Core, 2.5 mil, Silicone Adhesive

Our Part #TST-22-3000

Condition:New

Mfr Part #TST-22-3000

Has Expiration Date
$38.07Roll

Condition:New

Has Expiration Date
  • Our products under the brands Techni-Tool, Tec-Cut, Techni-Stat, and many others have merged to one brand, Techni-PRO. All the product specifications and functionality remain the same.

  • Polyimide backing and silicone adhesive offer outstanding thermal resistance and provides excellent electrical insulating properties.
  • This tape is used in applications where toughness, puncture resistance, extreme resistance to heat, and flame retardance are required.
  • Temperature resistant to 500°F

Uses include:

  • Protection of gold fingers during wave soldering.
  • Acting as a ground barrier and phase insulation in high-performance coils.
  • Serving as an outer wrap on small bobbin wound coils.
  • Application on form wound coils for traction motors.

BrandTechni-Pro
SeriesKapton Series
TypeKapton Tape
ColorAmber
Width3"
Length36 yd.
Adhesion Strength18
Adhesive TypeSilicone
Anti StaticNo
ApplicationsUse on Gold Fingers for Protection in Wave Soldering; Ground Barrier and Phase Insulation in High Performance Coils; Outer Wrap on Small Bobbin and Foam Wound Coils for Traction Motors
Backing MaterialPolyimide
Breaking Strength30 lb.
Core Size3"
Dielectric Breakdown7500 V
MaterialPolyimide
Shelf Life730 days
Temperature Range-100 to 500°F
Thickness2.5 mil
$38.07Roll
