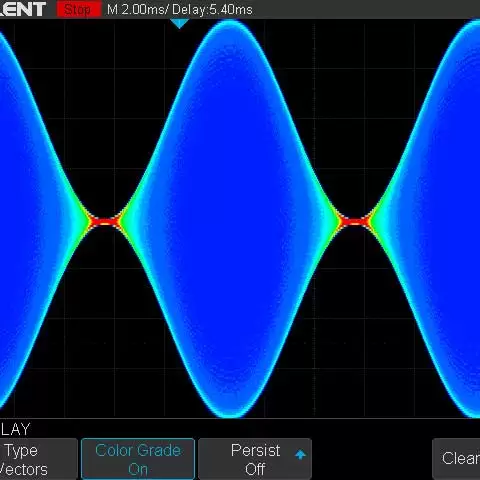

Bright Color Temperature Display

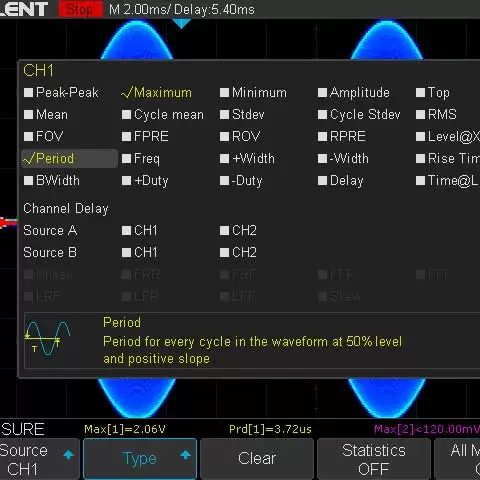

Easy Auto-Measurements

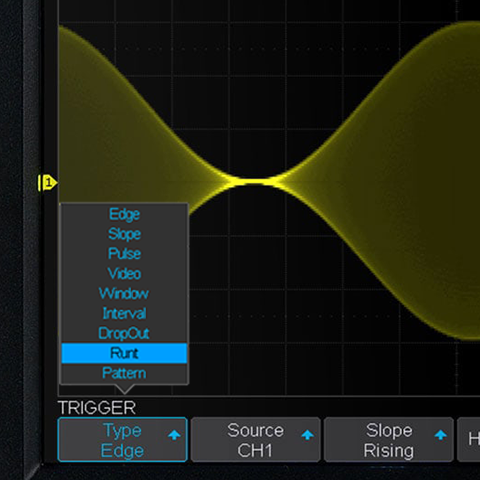

Intelligent Triggers
SIGLENT 1000X HD and 3000X HD Oscilloscopes with SPO technology.
Struggling with whether to choose an oscilloscope based on features… or value? With our SIGLENT 1000X HD and 3000X HD oscilloscopes, the choice is simple. Ideally balanced to deliver both, SIGLENT oscilloscopes are offered with bandwidths ranging from 50 MHz to 4 GHz with low-noise vertical scales down to 500 uV/div. Standard features include eye diagram/jitter analysis, compliance testing, MSO capabilities, serial decoding and much more. Proprietary SIGLENT SPO technology ensures a maximum waveform capture rate of up to 500,000 wfm/s (1000X HD - Sequence Mode) or 890,000 wfm/s (3000X HD — Sequence Mode), 256-level intensity grading display, and a color temperature display mode. With all these benefits plus a reasonable price tag, you'll never have to choose between features and value again.

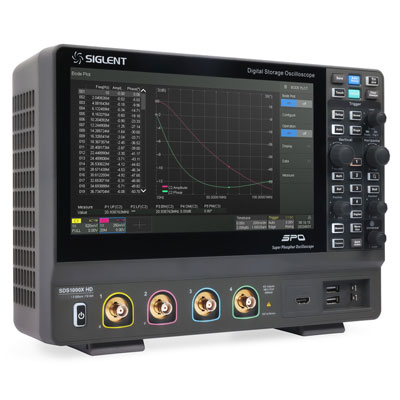

SIGLENT 1000X HD
- Maximum record length of 100 Mpts
- Display 2/4 analog channels + 16 digital channels mixed signal analysis ability
- SPO technology with a maximum waveform capture rate of up to 120,000 wfm/s (Normal Mode, 500,000 wfm/s in Sequence Mode)
- 256-level intensity grading display function plus a color temperature display mode
- Innovative digital trigger system with high sensitivity and low jitter
- Supports multiple powerful triggering modes including serial bus triggering
- Impressive array of tools and functions

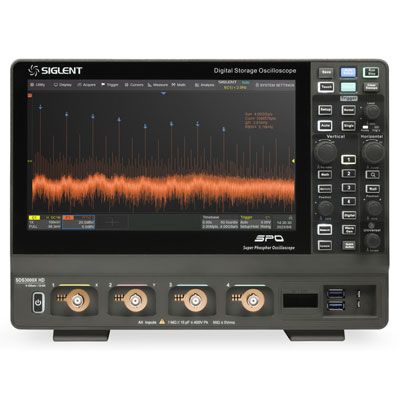

SIGLENT 3000X HD
- 12-bit ADCs with a sample rate of up to 4 GSa/s
- Maximum record length of 400 Mpts/ch
- Display up to 4 analog channels + 16 digital channels for high-performance mixed signal analysis
- SPO technology with a maximum waveform capture rate of up to 200,000 wfm/s (Normal Mode, 890,000 wfm/x in Sequence Mode)
- 256-level intensity grading display function plus a color temperature display mode
- Innovative digital trigger system with high sensitivity and low jitter
- Supports multiple powerful triggering modes including serial bus triggering
- Impressive array of measurement and math capabilities
- Options for a 50 MHz arbitrary waveform generator
