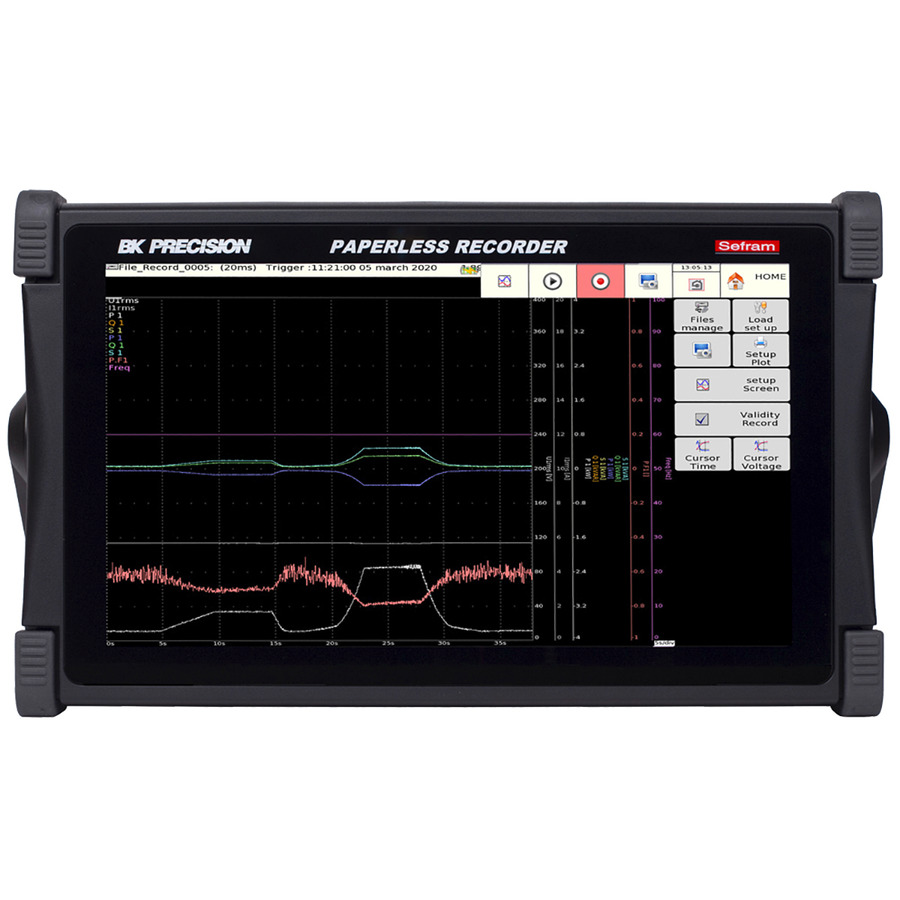

B&K Precision DAS1700 Data Acquisition System Offers High-Speed Measurements and Flexible Configuration
B&K Precision’s configurable data acquisition systems are ideal for a wide variety of applications including R&D testing, maintenance, and field testing, and power analysis of single and three phase systems.
DAS1700 Key Features
- Fast 1 MSa/s sampling rate on up to 36 channels simultaneously
- Up to 72 analog inputs (with multiplexed module and extension option)
- Four measurement module types:
- Universal input (6 channels)
- Multiplexed (12 channels)
- Strain Gauge (6 channels)
- High Voltage (6 channels)
- Up to 1000 VAC measurement with the high voltage board
- Power Analysis mode for 50 Hz, 60 Hz, 400 Hz, and 1 kHz single or 3-phase electrical networks
- Support for thermocouples and Pt100/200/500/1000 sensors for temperature measurements
- GPS and IRIG timing options
- 16-bit resolution when using multiplexed and strain gauge boards
- 14-bit resolution when using universal and high voltage boards
- 500 GB SSD internal storage with 2 TB option
- Wi-Fi monitoring and control with a standard USB Wi-Fi dongle
- 16 logic input channels
- CAT III 1000 V and CAT IV 600 V (High voltage module)
- USB host ports and LAN interface
- Built-in software for power analysis and mathematical functions for performing calculations between multiple channels
- CAN and LIN options
