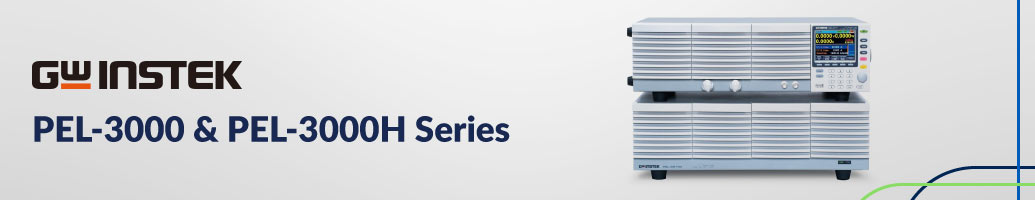

PEL-3000(H) Series Programmable DC Electronic Load
Flexible Power Combinations, High-Speed & Versatile Load Simulations

The PEL-3000 series, a single-channel, programmable D.C. electronic load with 0.01mA current resolution and 16A/μs current slew rate, is very ideal for testing server power supply and SPS (Switching Power Supply) for commercial and industrial computers. For a heavy-duty device like cloud ecosystem running 24-hour nonstop operations, a stable and high-power power supply, ranging from 175W to 1050W, is required to maintain the normal operation of server, Hub, and the equipment of data storage and internet communications.

Owing to the increasing demand of data transmission and large scale data storage of telecommunications systems, the infrastructure of internet communications is in the pace of rapid expansion. This has greatly boosted the market demand of telecommunications equipment powered by power supply of 2000W and above. The flexible power combination of PEL-3000 meets the test requirements of present high-power power supply.

The PEL-3000H programmable DC Electronic load, which not only inherited functions and features from the PEL-3000 series but providing three current ranges for all PEL-3000H series and adding voltage monitor BNC terminals on the front panel. The PEL-3000H series, a single-channel, programmable D.C. electronic load with 800V and 0.84A/μs current Slew Rate, is ideal for the test of the high voltage devices such as the EV & HEV in-vehicle chargers, DC/DC converters or high-voltage batteries.

ModelItemVoltage / Current / Power
PEL-3021DC Electronic Load0 - 35A / 1.5 - 150V , 175W
PEL-3041DC Electronic Load0 - 70A / 1.5 - 150V , 350W
PEL-3111DC Electronic Load 0 - 210A / 1.5 - 150V , 1050W
PEL-3211 Booster0 - 420A / 1.5 - 150V , 2100W
PEL-3212DC Electronic Load 0 - 420A / 1.5 - 150V , 2100W
PEL-3323DC Electronic Load0 - 630A / 1.5 - 150V , 3150W
PEL-3424DC Electronic Load0 - 840A / 1.5 - 150V , 4200W
PEL-3535DC Electronic Load0 - 1050A / 1.5 - 150V , 5250W
PEL-3322DC Electronic Load0 - 630A / 1.5 - 150V , 3150W
PEL-3533DC Electronic Load0 - 1050A / 1.5 - 150V , 5250W
PEL-3744DC Electronic Load0 - 1470A / 1.5 - 150V , 7350W
PEL-3955DC Electronic Load0 - 1890A / 1.5 - 150V , 9450W
PEL-3021HDC Electronic Load 8.75A/ 800V/ 175W
PEL-3041HDC Electronic Load 17.5A/ 800V/ 350W
PEL-3111HDC Electronic Load 52.5A/ 800V/ 1050W
PEL-3211HDC Electronic Load105A/ 800V/ 2100W
PEL-3212HDC Electronic Load 105A/ 800V/ 2100W
PEL-3323HDC Electronic Load157.5A/ 800V/ 3150W
PEL-3424HDC Electronic Load210A/ 800V/ 4200W
PEL-3535HDC Electronic Load262.5A/ 800V/ 5250W
PEL-3322HDC Electronic Load157.5A/ 800V/ 3150W
PEL-3533HDC Electronic Load262.5A/ 800V/ 5250W
PEL-3744HDC Electronic Load367.5A/ 800V/ 7350W
PEL-3955HDC Electronic Load472.5A/ 800V/ 9450W

Download this pdf for more information on the PEL-Series.
