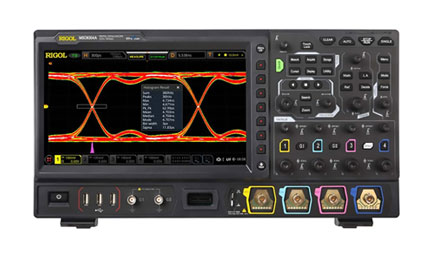

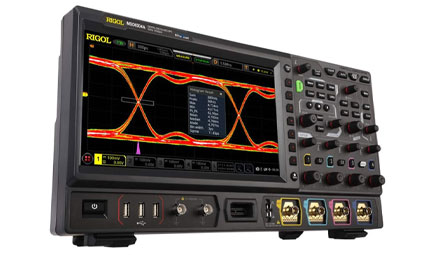

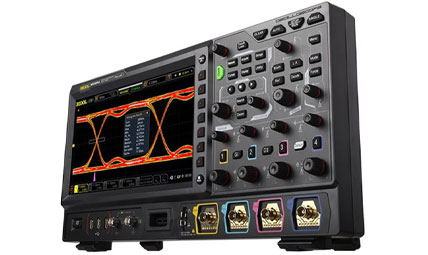

Visualize signal integrity with RIGOL MSO8000A series 7-in-1 integrated digital oscilloscope
Modern engineering design demands the highly integrated, multifunctional tools to support it. With the exceptional MSO8000A series, RIGOL combines 7 independent instruments into a single digital oscilloscope to deliver unparalleled performance at an unprecedented value. The MSO8000A series adopts RIGOL's advanced ASIC chip and UltraVision II technical platform equipped with higher waveform capture rate, full digital trigger technology and full memory hardware measurement technology. Designed for technical performance under pressure, the MSO8000A series offers up to 2 GHz analog bandwidth and 10 GSa/s real-time sample rate — making the eye diagram pre-test easy and supporting the eye measurement for all analog channels. With the MSO8000-JITTER option, the MSO8000A series oscilloscope additionally supports flexible and convenient jitter measurement and analysis. Portable, user-friendly and simple to operate, the MSO8000A series digital oscilloscope is easily upgraded with software keycode.
Shop MSO8000A Series Request a Quote Request a DemoRIGOL MSO8000A series delivers extraordinary UX with cost-effective pricing.
- Up to 10 GSa/s real-time sample rate
- Up to 500 Mpts memory depth (standard)
- High waveform capture rate (600,000+ per second)
- Up to 450,000 frames of hardware real-time
- Integrates 7 independent instruments: digital oscilloscope, 15-channel logic analyzer, spectrum analyzer, arbitrary waveform generator, digital voltmeter, high-precision frequency counter and totalizer, and protocol analyzer
- Analog bandwidth: 750 MHz, 1.5 GHz and 2 GHz
- 10.1” capacitive multi-touch screen with 256-level intensity grading display and color persistence
- Web Control and VNC remote command
- Waveform histogram analysis (standard)
- Auto measurement of 41 waveform parameters and full memory hardware measurement function
- 4 analog channels and 16 digital channels (with optional logic probe)
