Series |
Bandwidth |
Max Memory Depth |
Max Sample Rate |
Infiniium EXR-Series Oscilloscopes
Powerful, easy to own and intuitive to use the new features and improved functionalities across the board.

- Your Infiniium EXR-Series is more than just an oscilloscope - it’s 7 instruments in 1.
- Choose bandwidth ranges from 500 MHz to 2.5 GHz
- 4 times more vertical resolution than 8-bit oscilloscopes
- Up to 16 bits with high-res mode
- As low as 43 uV of noise, 9.0 bits system ENOB with hardware filtering
- Infiniium EXR-Series Data Sheet
|
500 MHz to
2.5 GHz |
100 Mpts to 400 Mpts |
16 GSa/s |
InfiniiVision 1000 X-Series Oscilloscopes
Professional-level capabilities in an entry-level instrument
.jpg)
- 50 MHz to 200MHz, and 2 or 4 analog channels
- See more signal detail with up to 200,000 wfms/sec update rate
- Make professional measurements, including mask, math, FFT, analog bus, and protocol triggering/decode
- Quickly learn how to use; Oscilloscopes have built-in help and training signals
- Educators can easily set up teaching labs with the free Educator's Resource Kit
- Datasheet
|
50 MHz to
70 MHz
100 MHz, 200 MHz
|
100 kpts to 2Mpts |
1 GSa/ to
2 GSa/s |
InfiniiVision 2000 X-Series Oscilloscopes
Get more scope for the same budget with breakthrough technology
.jpg)
- 70 MHz to 200MHz See more signal detail with 200,000 wfms/s update rate
- View time-correlated digital content with 8 digital channels (MSO)
- Modulate signals within the scope with Wave Gen, built-in 20MHz function generator (optional)
- Quickly characterize signals with the built-in 3-digit voltmeter and 5-digit counter.
- Decode serial busses faster with hardware-based serial analysis options for CAN, LIN, I2C, SPI and RS232/422/485/UART
- Protect your investment with full upgradability
- Datasheet
|
70 MHz to 200MHz |
1 Mpts |
2 GSa/s |
InfiniiVision 3000G X-Series Oscilloscopes
Get faster debugging and quicker diagnostics
- Waveform and Measurement Histograms
- Built-in 20 MHz Function/Arbitrary Waveform Generator
- 12C, SPI, UART, 12S, and USB PD Trigger and Decode
- Mask Limit and Measurement Limit Testing
- Standard 8-Digit Counter and Totalizer
- Frequency Response Analysis (Bode plots)
- Enhanced HDTV Video Analysis
- USB host, USB device, LAN, VGA Connectivity
|
100 MHz to 1GHz |
1 Mpts |
5 GSa/s |

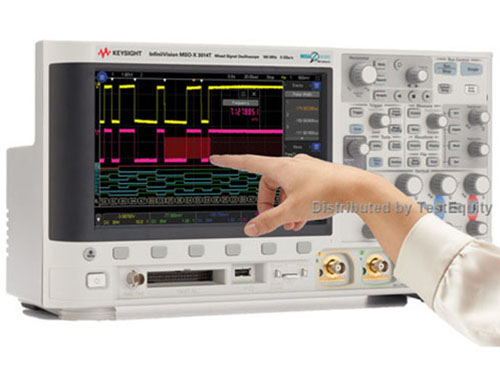

InfiniiVision 3000T X-Series Oscilloscopes
Making your measurements is as easy as touch, discover, solve
.jpg)
- 100 MHz - 1GHz, DSO and MSO models
- Speed testing with simplified operation and documentation enabled by the 8.5-inch capacitative touch screen
- Isolate signals in seconds with exclusive Zone Touch Triggering
- See the most signal detail with 1,000,000 wfms/s update rate
- Quickly modulate and characterize signals with built-in WaveGen 20 MHz ARB, 3-digit voltmeter and 8-digit frequency counter & totalizer options
- Decode serial busses faster with hardware-based serial analysis options
- Protect your investment with full upgradeability
- Datasheet
|
100 MHz to
1 GHz |
4 Mpts |
5 GSa/s |
InfiniiVision 3000A X-Series Oscilloscopes
Solve your measurement challenges faster with more oscilloscope capabilities
.jpg)
- 100 MHz to 1 GHz, DSO and MSO models
- View time-correlated digital content with 16 digital channels (MSO)
- Modulate signals within the scope with WaveGen, built-in 20 MHz function generator (optional)
- Quickly characterize signals with the built-in 3-digit voltmeter and 5-digit counter option
- Decode serial busses faster with hardware-based serial analysis options for CAN, LIN, I²C, SPI, RS232 and more
- Protect your investment with full upgradability
- Datasheet
|
100 MHz to
1 GHz |
4 Mpts |
4 GSa/ to 5 GSa/s |
InfiniiVision 4000 X-Series Oscilloscope
Usability and capability that redefine the oscilloscope experience
.jpg)
- 200 MHz to 1.5 GHz, DSO and MSO
- Speed testing with simplified operation and documentation, enabled by a 12.1-inch capacitative touch screen
- Isolate signals in seconds with exclusive Zone Touch Triggering
- See the most signal detail with 1,000,000 wfms/sec update rate
- Get more functionality with optional integrated digital channels (MSO), serial protocol analysis, dual-channel WaveGen and 3-digit voltmeter
- Protect your investment with full upgradability, add options and bandwidth at any time
- Datasheet
|
200 MHz to
1.5 GHz |
4 Mpts |
5 GSa/s |
InfiniiVision 6000 X-Series Oscilloscope
The value leader in price for performance
.jpg)
- 1 GHz to 6 GHz, DSO or MSO models
- See more signal detail with 450,000 wfms/s update rate
- Isolate signals in seconds with exclusive Zone Touch Triggering
- Operate hand-free with multi-language voice control
- Get more functionality with optional integrated digital channels, serial protocol analysis, dual-channel WaveGen and 10-digit counter + 3 digit voltmeter
- Protect your investment with full upgradability; add options and bandwidth at any time
- Datasheet
|
1 GHz to
6 GHz |
4 Mpts |
20 GSa/s |
Infiniium S-Series Oscilloscopes
See the true performance of your device with up to 16 bits

- Models from 500 MHz to 8 GHz bandwidth
- 4 analog channels, MSO models add 16 digital channels
- Achieve up to 16 bits of vertical resolution with our advanced system architecture
- Capture a longer signal trace with 20 GSa/s max sample rate and 100 Mpts/channel of standard memory
- Get superior signal integrity with an average system ENOB of 8.1 bits at full bandwidth
- Gain increased usability with the multi-touch supported 15” capacitive touch screen and solid state drive for fast boot and reliability
- Infiniium S-Series Data Sheet
|
500 MHz to
8 GHz |
100 Mpts |
20 GSa/s |
Keysight Streamline Series USB Oscilloscopes
Get a compact form with zero compromise in functionality
.jpg)
- Benefit from Keysight's InfiniiVision benchtop technology in a compact form, including 6-in-1 instrument integration
- Choose bandwidth ranges from 200 MHz to 1 GHz to match your application needs
- Quickly analyze signals with 31 typical oscilloscope measurements
- See more signal detail with 1,000,000 wfms/s update rate at 5 GSa/s sample rate
- Isolate signals in seconds with zone triggering
- Datasheet
|
200 MHz to
1 GHz |
4 Mpts |
5 GSa/s |
