Tektronix New 5 Series Mixed Signal Oscilloscope

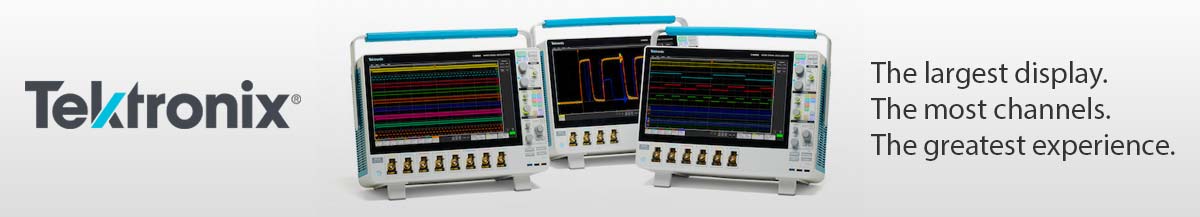

The largest display. The most channels. The greatest experience.



Tektronix 5 Series Mixed Signal Oscilloscopes feature a remarkably innovative pinch-swipe-zoom touchscreen user interface, the industry's largest high-definition display, and 4, 6, or 8 FlexChannel™ inputs that let you measure one analog or eight digital signals. The 5 Series MSO is ready for today’s toughest challenges, and tomorrow’s too. It sets a new standard for performance, analysis, and overall user experience.

The 5 series MSO models' product highlights and industry firsts include:

  • Bandwidth: 350 MHz, 500 MHz, 1 GHz, 2 GHz (Upgradeable)
  • Reconfigurable scope inputs (FlexChannels)
  • 4-, 6- or 8-FlexChannel® inputs can each show 1 analog or 8 digital signals
    • Inputs can be configured as either 1 analog channel or 8 digital channels
  • 15.6 inch, HD capacitive touch display delivers unmatched signal visibility
  • Up to 6.25 GS/s sample rate / 125 Mpts record length per channel
  • User interface designed for touch
  • Optional Windows operating system
  • 12-bit Analog-to-digital with enhanced resolution up to 16 bits
  • Optional Arbitrary/Function Generator



Tektronix MSO54, MSO56, MSO58

MSO54 | MSO56 | MSO58

  • Bandwidth: 350 MHz, 500 MHz, 1 GHz, 2 GHz (Upgradeable)
  • 4, 6 or 8 Analog Channels
  • Record Length: 62.5 Mpts (std), 125 Mpts (optional)
  • Optional Arbitrary / Function Generator
  • 15.6" HD Capacitive Touchscreen
  • Download Tektronix 5 Series Flyer

Tektronix 5 Series MSO Low Profile



MSO58LP 5 Series MSO Low Profile

MSO54 Mixed Signal Oscilliscope

Tektronix MSO54 Mixed Signal Oscilliscope

Four (4) FlexChannel Inputs

MSO56 Mixed Signal Oscilloscope

Tektronix MSO56 Mixed Signal Oscilloscope

Six (6) FlexChannel Inputs

MSO58 Mixed Signal Oscilloscope

Tektronix MSO58 Mixed Signal Oscilloscope

Eight (8) FlexChannel Inputs

NEW - TLP058 Logic Probe

The TLP058 provides eight high performance digital inputs. Connect as many TLP058
probes as you like, enabling up to a maximum of 64 digital channels. The TLP058 provides eight high performance digital inputs. Connect as many TLP058 probes as you like, enabling up to a maximum of 64 digital channels.

FlexChannel Technology Redefines Mixed Signal Oscilloscopes

With the eight FlexChannel MSO58, you can configure it to look at eight analog and zero digital signals. Or seven analog and eight digital. Or six analog and 16 digital, five analog and 24 digital and so on. You can change the configuration at any time by simply adding or removing TLP058 logic probes, so you always have the right number of digital channels.

Eight digital channels can be accessed on any FlexChannel simply by ordering a TLP058 logic probe, either with the instrument or separately.
