Watlow Composer® Graphical Configuration PC Software



  • Speeds up and simplifies commissioning
  • Create and archive profiles.
  • Create and archive controller setup. System image files contain complete configuration makes it fast and easy to duplicate settings from one controller to another.
  • Connects with controller easily via Ethernet.

Note: Composer software does not "control" or "run" the chamber. It can only be used for the profile creation, configuration, and archiving functions mentioned above. It cannot run a profile or be used to monitor the chamber.

System requirements

  • Windows® 7 or higher
  • Microprocessor: 1 GHz or faster 32-bit or 64-bit
  • Memory: 1 GB RAM (32-bit) or 2 GB RAM (64-bit)
  • Disk Space: 250 MB
  • Video: 1366 x 786 or higher
  • Ethernet interface for communicating with F4T controller.

NOTE: Composer software does NOT work on the F4T over RS-232, USB, GPIB or the external Modbus-Ethernet converter (TE-1056, ICS 9099). Composer software only communicates over the native F4T Ethernet Interface.

Download Composer Software, Version 3.5.15 (March 20, 2019) (367M)

Composer Software

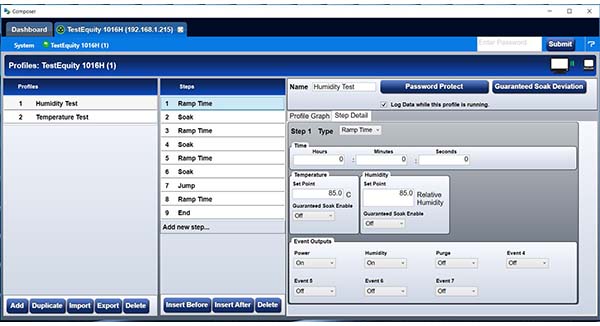

Create and archive profiles with Composer Software
