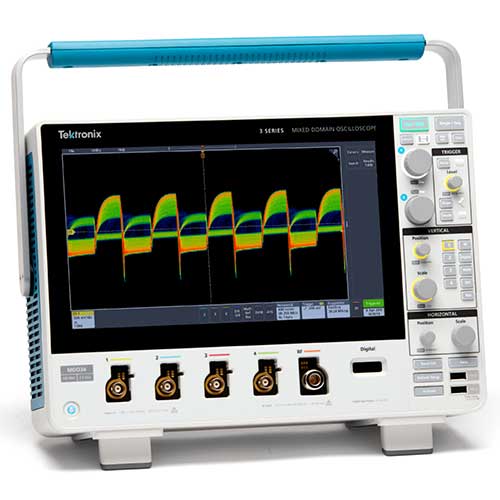

3 Series MDO Mixed Domain Oscilloscope

Experience a big, high-definition display in a compact, portable scope. An award-winning, made-for-touch interface turns the learning curve into a step function. The unique built-in spectrum analyzer option makes it great for RF analysis.
  • Bandwidth: Up to 1 GHz
  • Record Length: 10 Mpoints
  • Analog Channels: 2 or 4
  • Sample Rate: Up to 5 GS/s

The biggest display in its class, and remarkable user interface

With the same made-for-touch user interface technology as the award-winning 5 Series along with the largest display and highest resolution display in its class, the 3 Series MDO works how a scope should work.

  • 11.6-inch HD display
  • Pinch, tap, swipe capacitive touchscreen
See how the 3 Series MDO user interface helps you work better and faster.

Compact, yet packed with capabilities

It’s only 6 inches(15 cm) deep but the 3 Series MDO is a lot of oscilloscope. It gives you the tools you need to validate and troubleshoot complex embedded systems.

  • Up to 5 GS/s sample rate on each analog channel
  • More than 125 trigger combinations
  • Dozens of automated measurements
  • Wide range of available serial bus decode and trigger options
  • Optional 16 digital logic channels
  • Optional integrated 1 GHz or 3 GHz spectrum analyzer
  • Optional 50 MHz arbitrary / function generator
See how to take great measurements and find elusive artifacts and anomalies.

Specs at a glance

Input Channels

  • 2 or 4 analog
  • 16 digital1
  • 1 spectrum analyzer1

Bandwidth1

  • 100 MHz, 200 MHz, 350 MHz, 500 MHz, or 1 GHz

Sample Rate

  • 5 GS/s (1 GHz model), 2.5 GS (all other models) on analog channels
  • Up to 8.25 GS/s (121 ps resolution) on digital channels

Record Length

  • 10 Mpoints on all channels

Spectrum Analyzer1

  • 1 GHz or 3 GHz

Signal Generator1

  • Arbitrary, Sine, Square, Pulse, Ramp, Triangle, DC Level, Gaussian, Lorentz, Exponential Rise/Fall, Sin(x)/x, Random Noise, Haversine, Cardiac

Digital Voltmeter2

  • 4-digit AC RMS, DC, and AC+DC RMS voltage measurements

Trigger Frequency Counter2

  • 5-digit frequency measurements

Advanced Analysis1

  • Automated Power Measurements

Protocol Support1

  • I2C, SPI
  • RS-232, RS-422, RS-485, UART
  • CAN, CAN FD, LIN, FlexRay
  • MIL-STD-1553, ARINC 429
  • I2S, LJ, RJ, TDM
  • USB 2.0

Display

  • 11.6-inch (295 mm)
  • HD color (1920 x 1080) capacitive touchscreen

Weight

  • 11.7 lbs (5.3 kg)

A built-in spectrum analyzer

Whether you’re a spectrum analyzer expert or an occasional user, you’ll be able to put the built-in spectrum analyzer right to work. Unlike other oscilloscopes that offer FFT “spectrum analysis”, the 3 Series has a true spectrum analyzer built right in.

  • 1 GHz or 3 GHz built-in spectrum analyzer options
  • Industry’s only true integrated spectrum analyzer hardware
  • Ultra-wide capture bandwidth up to 3 GHz
See the built-in spectrum analyzer at work.

Capable. Upgradeable.



Get all the debug tools you need right away or add them when you need them.

  • Bandwidth up to 1 GHz
  • Digital channels: MSO option adds 16 digital channels
  • Spectrum Analyzer up to 3 GHz
  • DVM/Freq Counter (free with registration)
  • Arbitrary/Function Generator
  • Advanced Analysis
    • Serial bus decoding and triggering
    • Automated Power Measurements
See the capability the 3 Series MDO can bring to your bench.

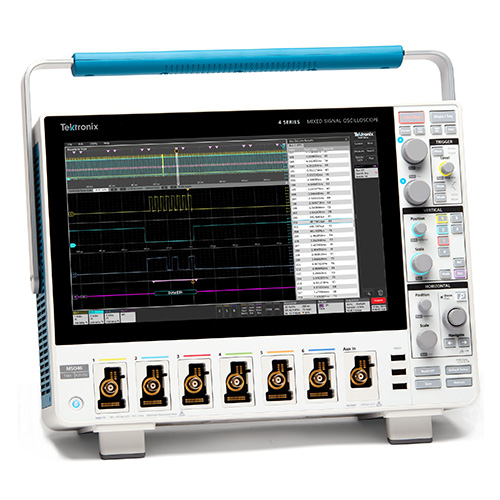

4 Series MSO Mixed Signal Oscilloscope

With the largest display and highest available channel count in its class, the 4 Series offers unprecedented insight in a bench-friendly package. And its made-for-touch user interface works exactly as you'd expect.
  • Bandwidth: Up to 1.5 GHz
  • Record Length: 62.5 Mpoints (optional)
  • Analog Channels: 4 or 6
  • Vertical Resolution: 12 bits (standard)

Biggest display in its class and award-winning user interface

With the same made-for-touch user interface technology as the award-winning 5 Series and the largest and highest resolution display in its class, the 4 Series MSO sets a new expectation of how a scope should work.

  • 13.3-inch HD display
  • 6.1-inch (15.5 cm) deep bench-friendly footprint
Watch how the 4 Series MSO user interface helps you work better and faster.

Outstanding details and up to 6 super-flexible channels

  • Any channel can show a waveform, spectrum, or both
  • Any input can be used to view eight digital channels by connecting a logic probe
  • Outstanding detail and accurate measurements on all channels
    • 12-bit vertical resolution (16-bit in high res mode)
    • 6.25 GS/s on all analog and digital channels
    • Up to 62.5 Mpoints record length
Watch and learn how 4 Series performance helps you see more.

Specs at a glance

Input Channels

  • 4 or 6 FlexChannel inputs
  • Each FlexChannel provides 1 analog signal input or 8 digital logic inputs with TLP058 probe

Bandwidth1

  • 200 MHz, 350 MHz, 500 MHz, 1 GHz or 1.5 GHz

Sample Rate

  • 6.25 GS/s on all analog/digital channels

Record Length

  • 31.25 or 62.5 Mpoints

Vertical Resolution

  • 12 bits
  • Up to 16 bits in High Res mode

Signal Generation1

  • Arbitrary, Sine, Square, Pulse, Ramp, Triangle, DC Level, Gaussian, Lorentz, Exponential Rise/Fall, Sin(x)/x, Random Noise, Haversine, Cardiac

Digital Voltmeter2

  • 4-digit AC RMS, DC
  • DC+AC RMS voltage

Trigger Frequency Counter2

  • 8-digit

Advanced Analysis1

  • Automated Power Measurements
  • Spectrum View Mixed Domain Analysis

Protocol Support1

  • 10BASE-T, 100BASE-TX
  • CAN, CAN FD, LIN, FlexRay
  • I2C, SPI
  • I2S, LJ, RJ, TDM
  • I3C
  • MIL-STD-1553, ARINC 429
  • RS-232, RS-422, RS-485, UART
  • SENT
  • SPMI
  • USB 2.0 LS, FS, HS

Display

  • 13.3-inch (338 mm)
  • HD color (1920 x 1080) capacitive touchscreen

Dimensions (H x W x D)

  • 249 mm x 405 mm x 155 mm
  • (9.8 in x 15.9 in x 6.1 in)

Weight

  • 16 lbs (7.3 kg)

Versatile and upgradeable

Get all the debug tools you need right away or add them when you need them - without having to send it back.

  • Bandwidth up to 1.5 GHz
  • Record length up to 62.5 Mpoints
  • Digital channels: each TLP058 logic probe provides 8 digital channels
  • DVM/Freq Counter (free with registration)
  • Arbitrary/Function Generator
  • Advanced Analysis
    • Serial bus decoding and triggering
    • Spectrum View mixed domain analysis
    • Automated power measurements
See the capability the 4 Series MSO can bring to your bench.
