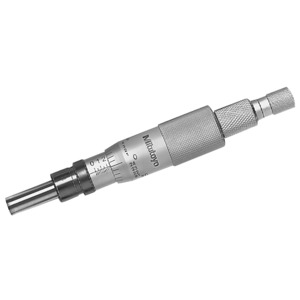

Micrometer Heads-non-rotating
The Mitutoyo non-rotating spindle standard micrometer head has a hardened-steel spindle and carbide measuring face for a wide range of applications. The Mitutoyo micrometer head, with a non-rotating spindle, is available in three different lengths and two spindle ranges making the mic head ideal for use in many different areas and applications. The non-rotating spindle eliminates torque for more precise, reliable adjustments and measurements.

■ Available in Metric and Inch models
■ Mic head has a 18mm thimble diameter
■ Spindle ranges available are 15mm / .5” and 25mm / 1”
■ Spindle diameters available are 6.35mm / .25” and8mm / .314”
■ Mic head total lengths (at stroke end) are 5mm / 3.96”, 132.5mm / 5.22”, and 149.5mm / 5.88”
■ Mounting stem diameters are 9.5mm / 3.75” and 12mm / .5”
■ Flat spindle faces have lapped surfaces and are constructed of carbide for more accurate measurements over time
■ Thimble is hard-chrome plated with laser-etched scales for easy-to-read measurements
